ECWFE2W335J
MKP capacitors

• dielectric consists of metallized polypropylene film (PPT)
• coating: flame-retardant epoxy resin
• small dimensions

• excellent frequency characteristics
• no power loss
• recommended for application in high current and high frequency circuits as well as in active filter circuits
•
±5% capacitance tolerance
• operating temperature: up -40 to +105°C
• by Panasonic


ECWFE2W335J

106509 ECWFE2W335J ECWFE2W335J MKP capacitors• dielectric consists of metallized polypropylene film (PPT)• coating: flame-retardant epoxy resin• small dimensions• excellent frequency characteristics• no power loss• recommended for application in high current and high frequency circuits as well as in active filter circuits• ±5% capacitance tolerance• operating temperature: up -40 to +105°C• by Panasonic

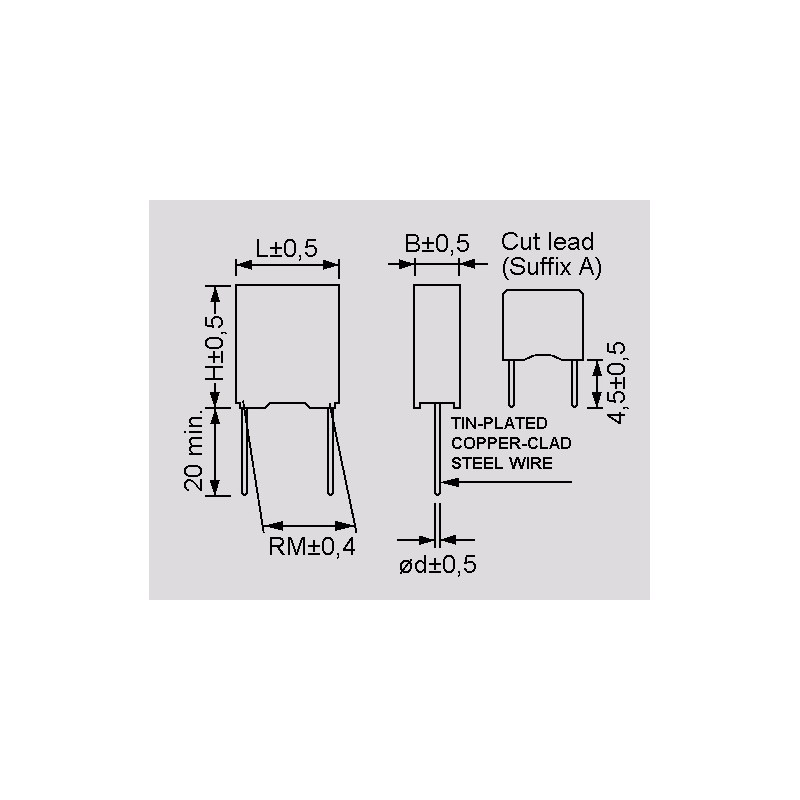

Specifications

manufacturer
Manufacturer's name ECWFE2W335J
Design loose
Nominal voltage [V DC] 450
Ød [mm] 0,8
Height [mm] 17
Width [mm] 10
Capacity [µF] 3,3
Pitch [mm] 22,5
Length [mm] 26
Data Sheet

Unit price

0,611 €

Stock: 100
Further delivery:
CW 03/2025

Minimum order quantity 50 units or
multiples of 50.
