ERJ6RSFR10V

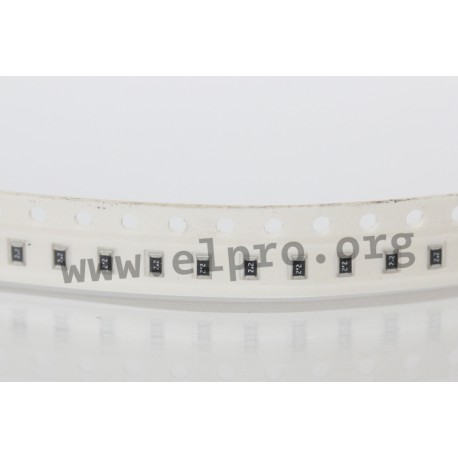

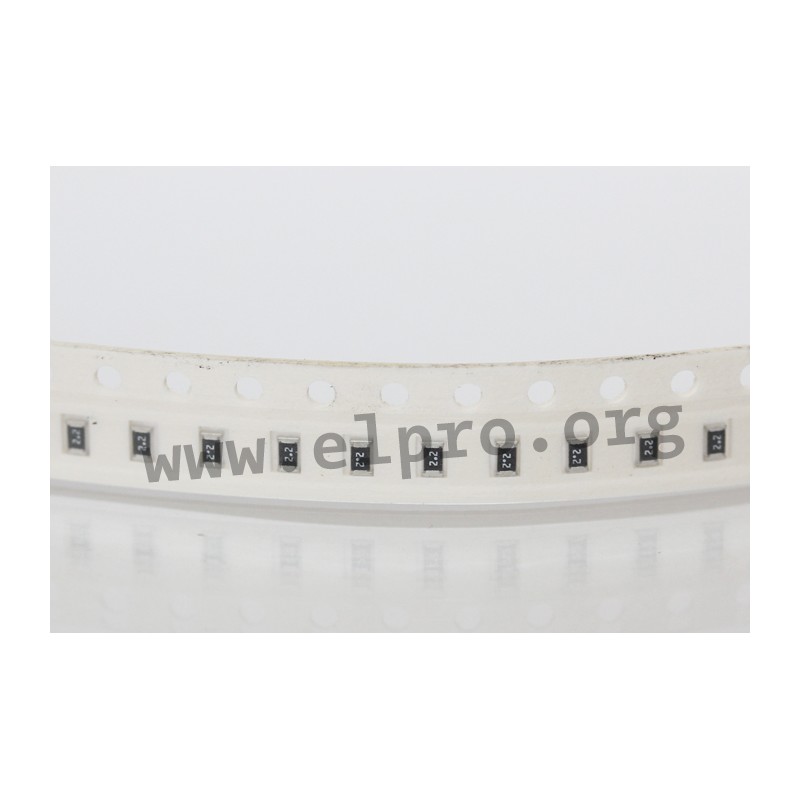

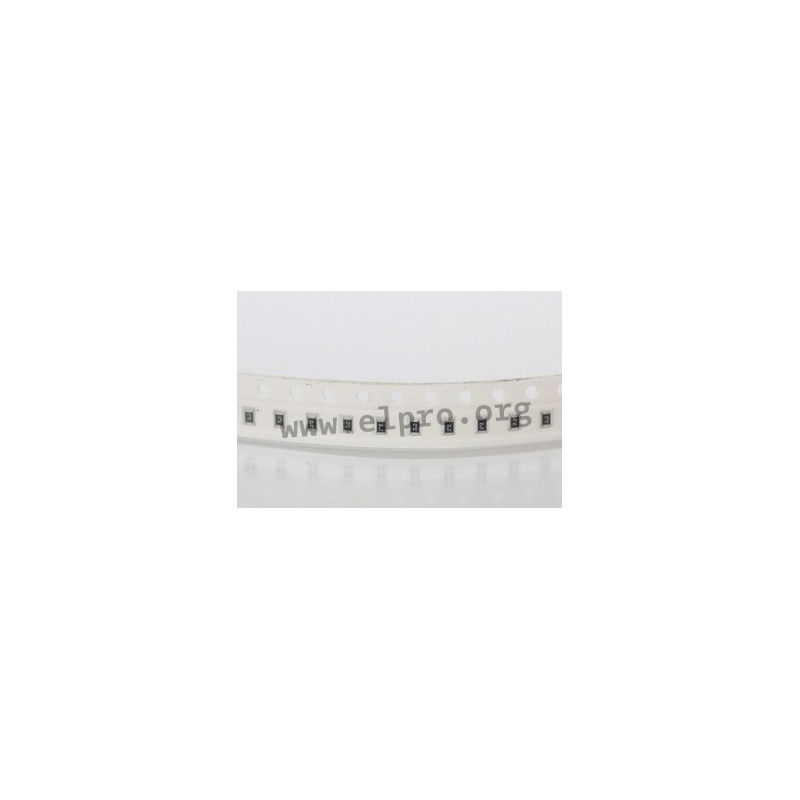

Panasonic SMD thick film resistor series ERJ6_

Small and lightweight current sensing resistors in a 0805 SMD housing and suitable for direct PCB mounting as well as for reflow and wave soldering. They have a high reliability due to three layers of electrodes and a metal glaze resistive element, as well as types with an improved resistance to pulse behaviour (ERJ6BW_) are available. We offer various types of this Panasonic series.

  • resistance tolerance: ±1%
  • taped
ERJ6RSFR10V, Panasonic SMD resistors, 0805 housing, 1%, 0,125 to 0,33W, ERJ6_ series

ERJ6RSFR10V

108047 ERJ6RSFR10V ERJ6RSFR10V Panasonic SMD thick film resistor series ERJ6_. Small and lightweight current sensing resistors in a 0805 SMD housing and suitable for direct PCB mounting as well as for reflow and wave soldering. They have a high reliability due to three layers of electrodes and a metal glaze resistive element, as well as types with an improved resistance to pulse behaviour (ERJ6BW_) are available. We offer various types of this Panasonic series. resistance tolerance: ±1% taped

Specifications

manufacturer
Manufacturer's name ERJ6RSFR10V

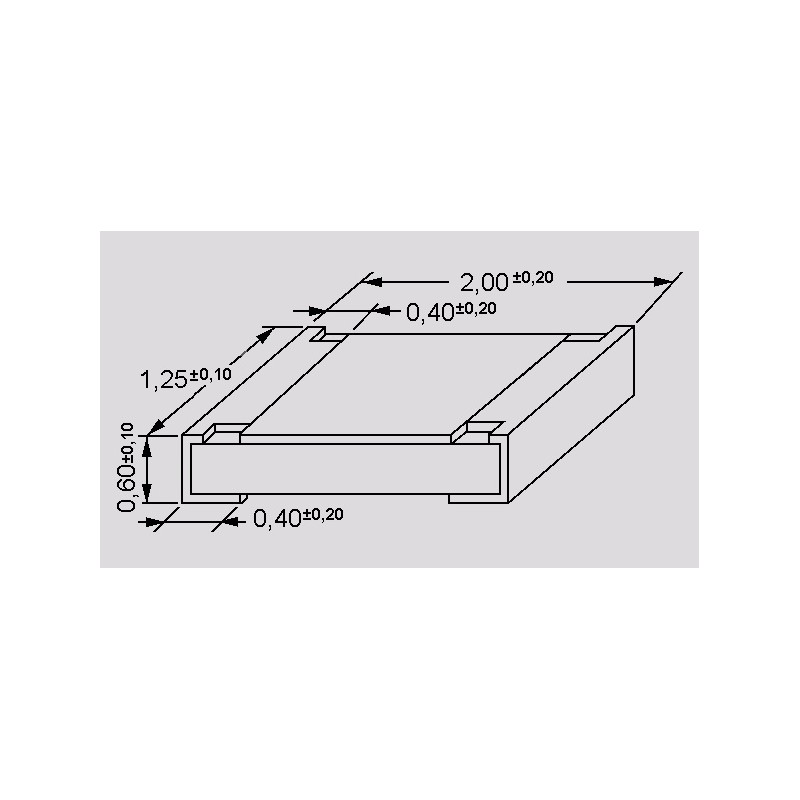

Case 0805
Design taped
Resistance [Ω] 0,1
Power [W] 0,125
Tolerance [%] 1
Data Sheet

Unit price

0,091 €

Stock: 4300
Further delivery:
CW 41/2026

Minimum order quantity 100 units or
multiples of 100.
