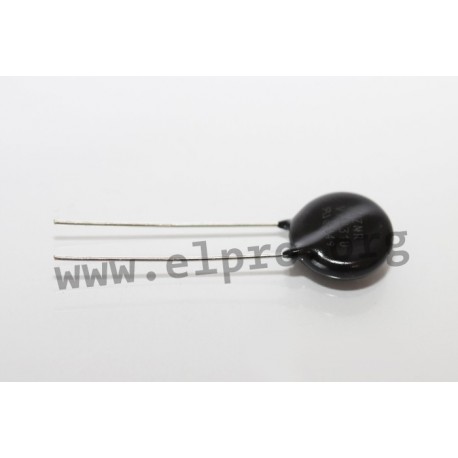

ERZV05D470

Panasonic metal oxide varistor series ERZV

  • varistors (MOV) for absorbing transient overvoltages
  • "ZNR" transient / surge absorbers (type D)
  • with a high energy handling capability as well as a large withstanding surge current capability
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
ERZV05D470

ERZV05D470

45368 ERZV05D470 ERZV05D470 Panasonic metal oxide varistor series ERZV. varistors (MOV) for absorbing transient overvoltages  "ZNR" transient / surge absorbers (type D) with a high energy handling capability as well as a large withstanding surge current capability   operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ERZV05D470
Current [A] 250
Diameter [mm] 7
Height [mm] 10
(Max.) RMS voltage [V] 30
Pitch [mm] 5
Operating voltage [V] 38
Varistor voltage at 1mA [V] 47
D [mm] 0,6
Data Sheet

Unit price

0,075 €

Stock: 900

Minimum order quantity 25 units or
multiples of 25.
