ERZV10D681

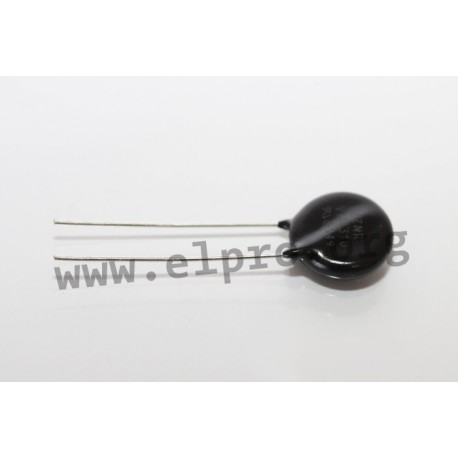

Panasonic metal oxide varistor series ERZV

  • varistors (MOV) for absorbing transient overvoltages
  • "ZNR" transient / surge absorbers (type D)
  • with a high energy handling capability as well as a large withstanding surge current capability
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
ERZV10D681

ERZV10D681

45399 ERZV10D681 ERZV10D681 Panasonic metal oxide varistor series ERZV. varistors (MOV) for absorbing transient overvoltages  "ZNR" transient / surge absorbers (type D) with a high energy handling capability as well as a large withstanding surge current capability   operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

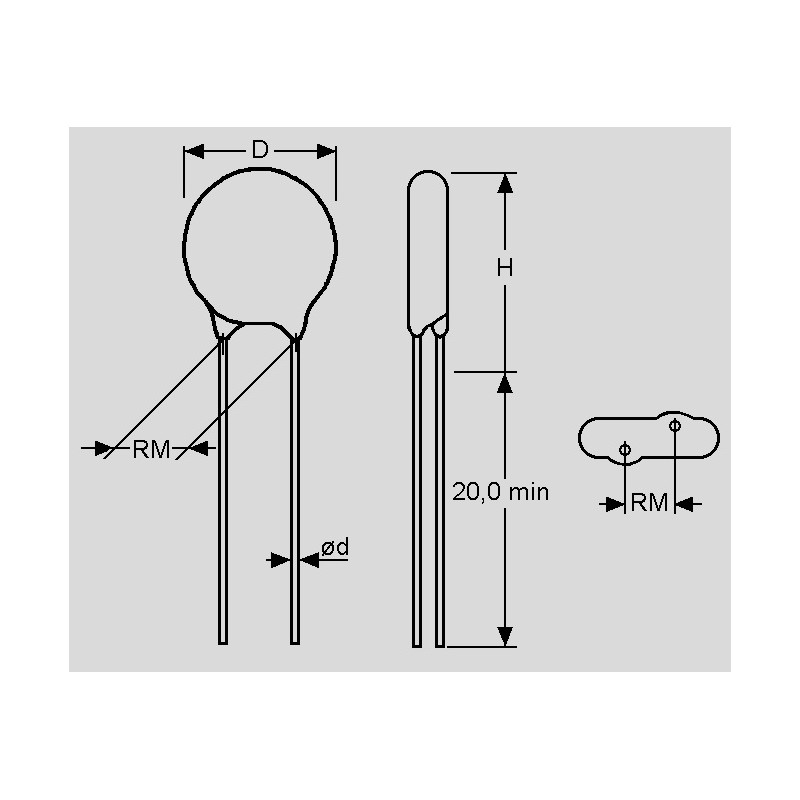

Specifications

manufacturer
Manufacturer's name ERZV10D681
Current [A] 3500
Diameter [mm] 12,5
Height [mm] 15,5
(Max.) RMS voltage [V] 420
Pitch [mm] 7,5
Operating voltage [V] 560
Varistor voltage at 1mA [V] 680
D [mm] 0,8
Data Sheet

Unit price

0,191 €

Stock: 1375
Further delivery:
CW 47/2024

Minimum order quantity 25 units or
multiples of 25.
