ERZV14D821

Panasonic metal oxide varistor series ERZV

  • varistors (MOV) for absorbing transient overvoltages
  • "ZNR" transient / surge absorbers (type D)
  • with a high energy handling capability as well as a large withstanding surge current capability
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
ERZV14D821

ERZV14D821

45416 ERZV14D821 ERZV14D821 Panasonic metal oxide varistor series ERZV. varistors (MOV) for absorbing transient overvoltages  "ZNR" transient / surge absorbers (type D) with a high energy handling capability as well as a large withstanding surge current capability   operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ERZV14D821
Current [A] 5000

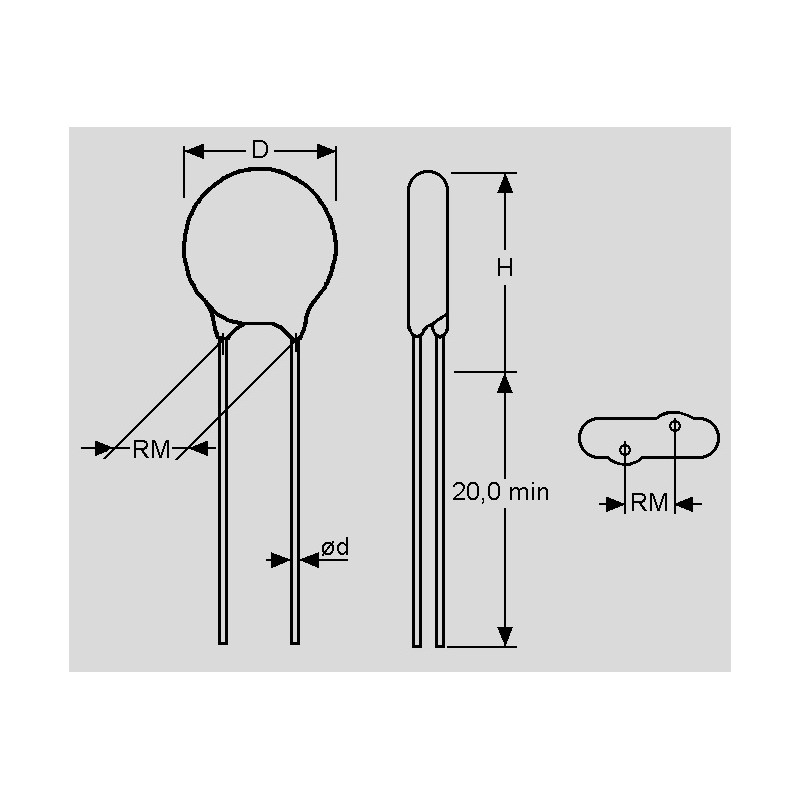

Diameter [mm] 16
Height [mm] 19
(Max.) RMS voltage [V] 510
Pitch [mm] 7,5
Operating voltage [V] 670
Varistor voltage at 1mA [V] 820
D [mm] 0,8
Data Sheet

Unit price

0,331 €

Stock: 325

Minimum order quantity 25 units or
multiples of 25.
