EEEFC1C100AR

SMD electrolytic capacitors series FC

We are offering the following SMD electrolytic capacitors in a taped style by Panasonic: EEEFC1A101AP, EEEFC1A102AP, EEEFC1C101AP, EEEFC1C471AP, EEEFC1E101AP, EEEFC1E471AP, EEEFC1V1R0AR, EEEFC1V220AP, EEEFC1V470AP, EEEFC1V101AP, EEEFC1V331AP and EEEFC1C100AR.

• rated voltage, max.: 10 to 35V DC
• capacitance tolerance: ±20%
• temperature range: -40 to +105°C
• operating life (at 105°C): 1000h

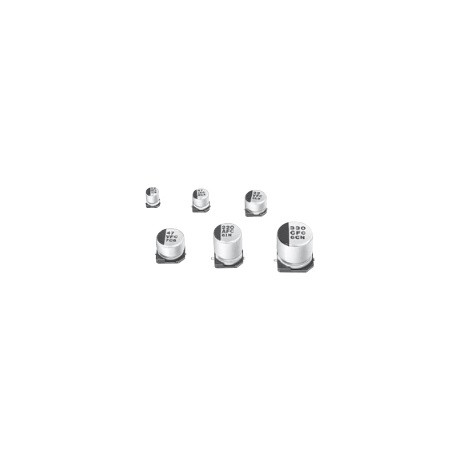

SMD-electrolytic capacitors series FC

EEEFC1C100AR

109812 EEEFC1C100AR EEEFC1C100AR SMD electrolytic capacitors series FC. We are offering the following SMD electrolytic capacitors in a taped style by Panasonic: EEEFC1A101AP, EEEFC1A102AP, EEEFC1C101AP, EEEFC1C471AP, EEEFC1E101AP, EEEFC1E471AP, EEEFC1V1R0AR, EEEFC1V220AP, EEEFC1V470AP, EEEFC1V101AP, EEEFC1V331AP and EEEFC1C100AR. • rated voltage, max.: 10 to 35V DC• capacitance tolerance: ±20%• temperature range: -40 to +105°C• operating life (at 105°C): 1000h

Specifications

manufacturer
Manufacturer's name EEEFC1C100AR
Design B
Reverse current [mA] 60
Nominal voltage [V DC] 16
Impedance [Ω] 3
Loss factor at 120Hz, 20°C 0,16
Data Sheet

Unit price

0,115 €

Stock: 13000
Further delivery:
CW 40/2024

Minimum order quantity 100 units or
multiples of 100.
