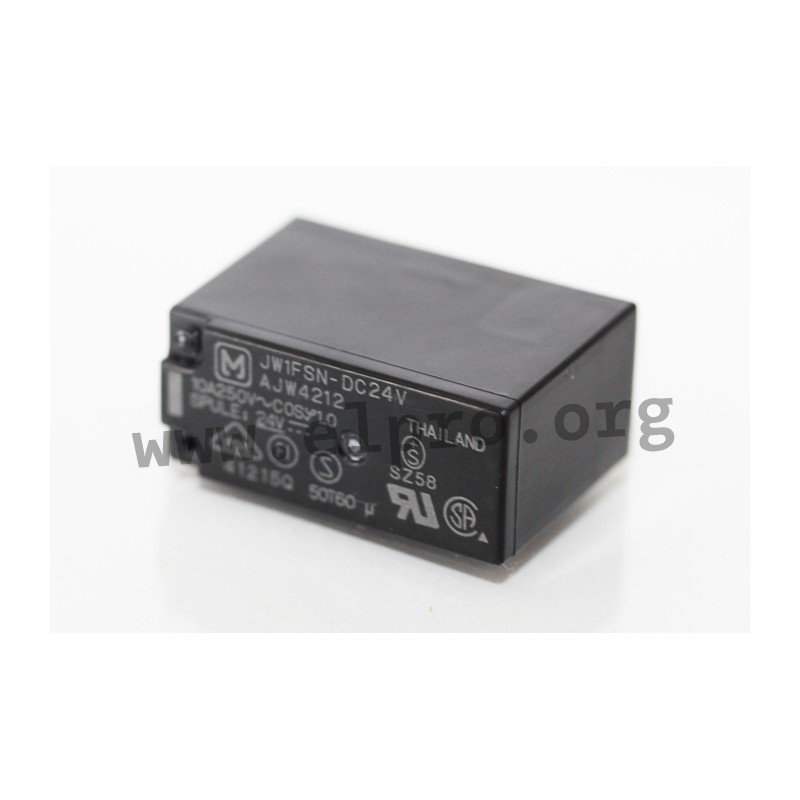

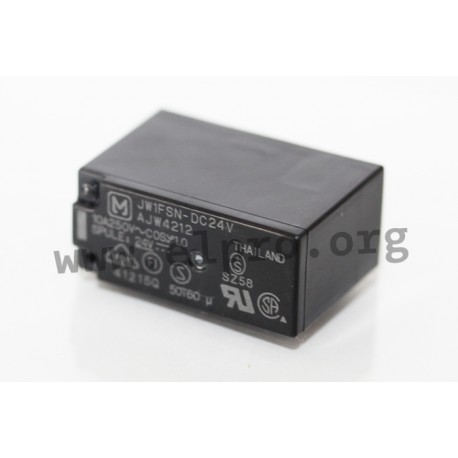

JW1FSN-DC24V

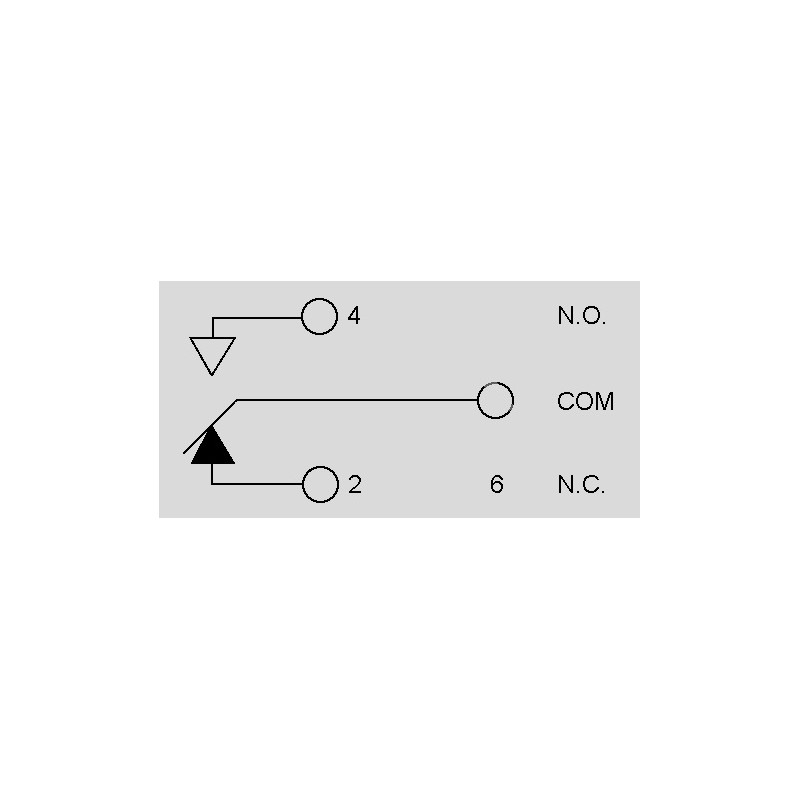

* contact: SPSD

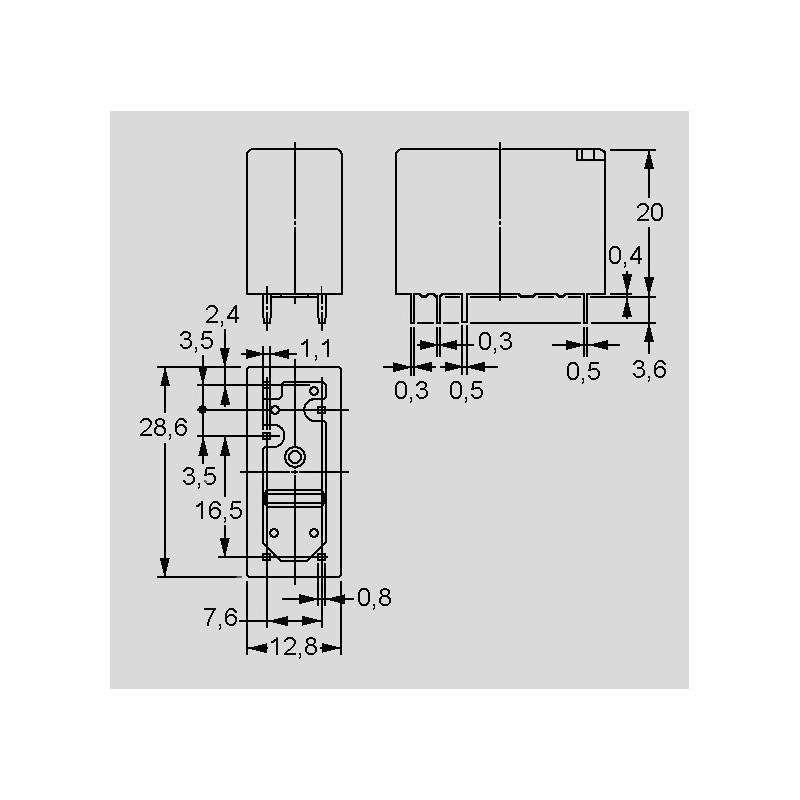

* housing: 28.6x12.8x20mm
* small power relay
* high dielectric resistance for overvoltage protection
* 10000V surge in µs between coil and contact
* typical applications: home appliances, office machines and industrial equipment
* contact material: AgNi
* max. switching current: 10A
* max. switching voltage: 250V AC/30V DC
* max. switching power: 2500VA, 300W
* operate/release time: 15/5ms
* testing voltage coil/contact (1min.): 5000V AC
* testing voltage open contacts (1min.): 1000V AC
* min. lifetime mechanical: 5x106 operations
* min. lifetime electrical: 10x104 operations
* operating temperature: -40...+60°C
* by Panasonic
* weight aprox.: 13g
PCB relays 10A, JW by Panasonic
* series: JW* contact: SPSD
* housing: 28.6x12.8x20mm
* small power relay
* high dielectric resistance for overvoltage protection
* 10000V surge in µs between coil and contact
* typical applications: home appliances, office machines and industrial equipment
* contact material: AgNi
* max. switching current: 10A
* max. switching voltage: 250V AC/30V DC
* max. switching power: 2500VA, 300W
* operate/release time: 15/5ms
* testing voltage coil/contact (1min.): 5000V AC
* testing voltage open contacts (1min.): 1000V AC
* min. lifetime mechanical: 5x106 operations
* min. lifetime electrical: 10x104 operations
* operating temperature: -40...+60°C
* by Panasonic
* weight aprox.: 13g
JW1FSN-DC24V
Specifications
| manufacturer | Panasonic |
| Manufacturer's name | JW1FSN-24 |
| Rated current [mA] | 22 |
| Nominal resistance [Ω] | 1100 |
| Switching current [A] | 10 |
| Nominal capacity [mW] | 530 |
