Manufacturers

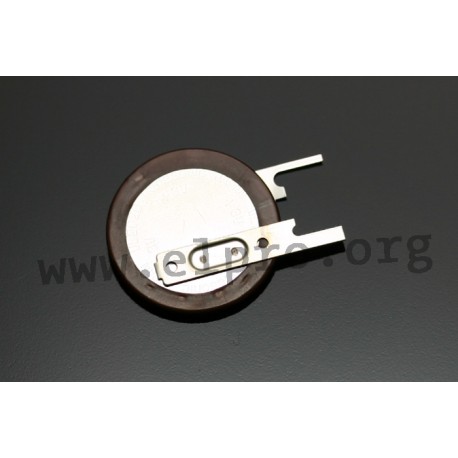

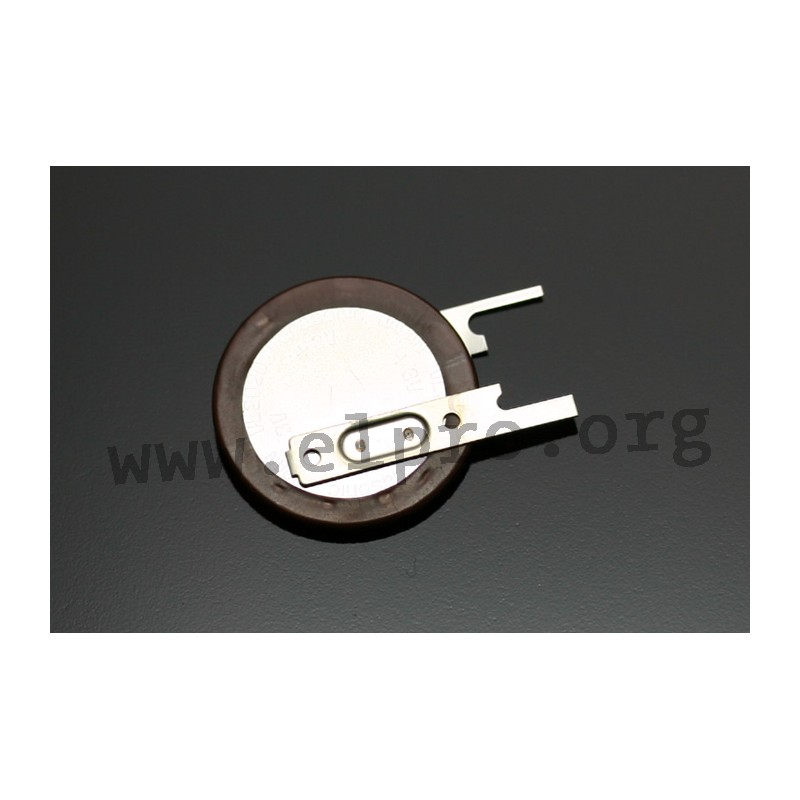

VL 2020 stehend

Panasonic vanadium pentoxide lithium battery series VL

Vanadium-pentoxide-lithium batteries with a rated voltage of 3 volts and a low discharge current of 2% per year. These batteries are rechargeable after a backup application and have a constant charging voltage of 3,4V±0,15V. They have a temperature range from -20 up to +60°C.

VL 2020 stehend

27256 VL 2020 stehend VL-2020/VCN VL-2020/VCN Panasonic vanadium pentoxide lithium battery series VL. Vanadium-pentoxide-lithium batteries with a rated voltage of 3 volts and a low discharge current of 2% per year. These batteries are rechargeable after a backup application and have a constant charging voltage of 3,4V±0,15V. They have a temperature range from -20 up to +60°C.

Data sheet

manufacturer
manufacturer's name VL-2020/VCN

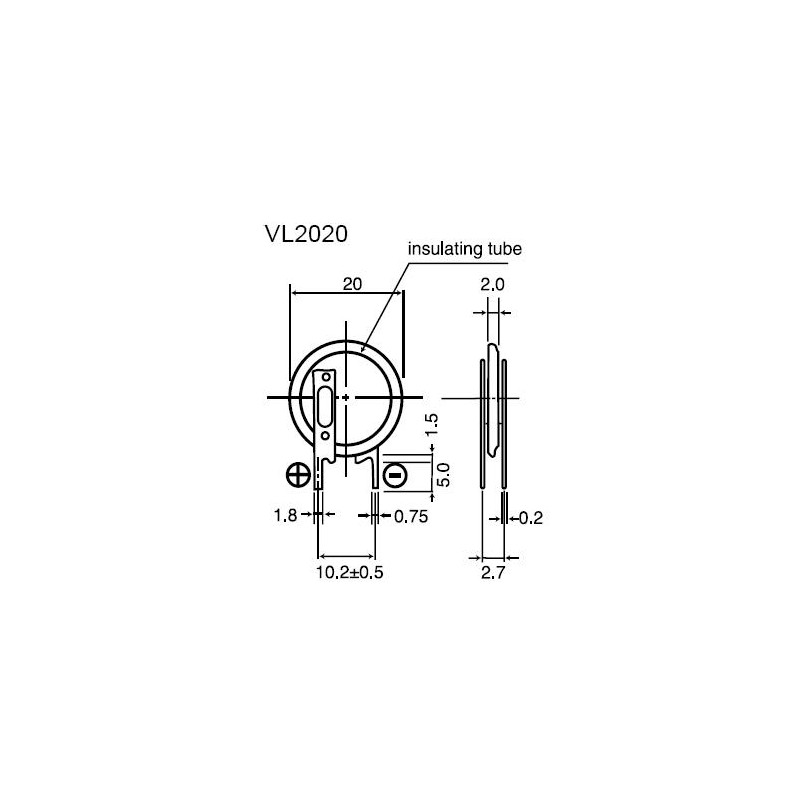

design vertical
diameter [mm] 20
height [mm] 2
capacity [mAh] 20
nominal voltage [V] 3
Continuous Discharging Current [mA] 0,07

Download

Data Sheet

3,79 €

Volume discounts

2 pcs. / 2,69 €

stock: 1074
