AK 1550/12-3,5

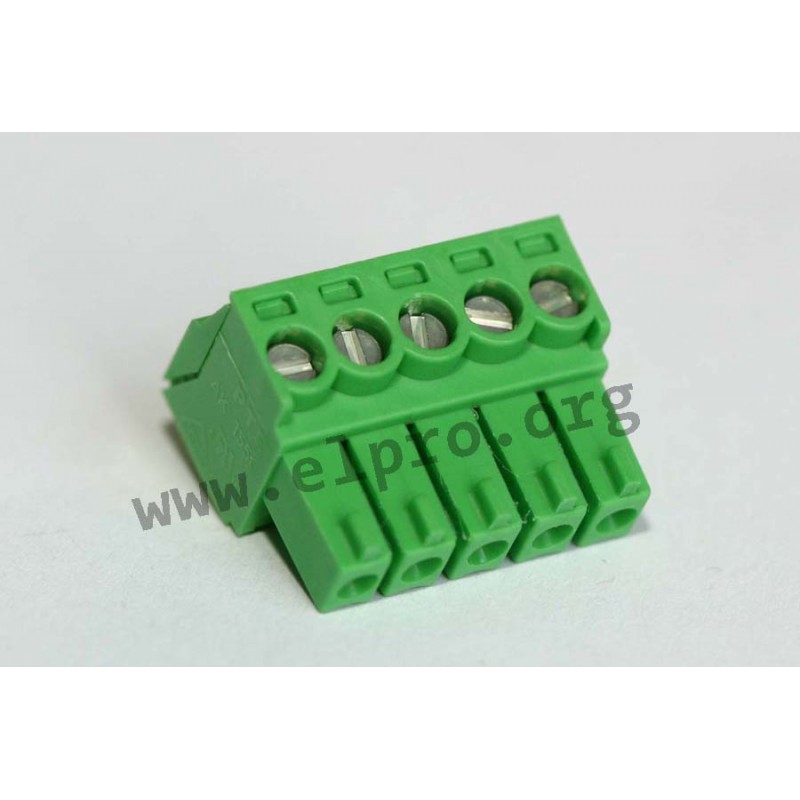

PTR multiconnector series AK1550

  • screw-cage clamp principle
  • conductor: vertical
  • pitch: 3.5mm
  • 2-, 3-, 4-, 5-, 6-, 8-, 10-, 12- or 16-pole
  • rated voltage (EN 61984): 160V
  • rated current (T60): 8A
  • rated surge voltage: 4kV
  • rated cross section single-stranded wire: 1.5mm²
  • rated cross section fine-stranded wire: 1.0mm²
  • stripped length: 7mm
  • insulating material: PA
  • temperature range: -30°C to +105°C
  • flammability class: UL94V-0
  • colour: green

Matching box headers straight

Matching box headers angled

PTR multiconnector

AK 1550/12-3,5

112480 AK 1550/12-3,5 AK1550/12-3.5-GRUEN AK1550/12-3.5-GRUEN PTR multiconnector series AK1550. screw-cage clamp principle conductor: vertical pitch: 3.5mm 2-, 3-, 4-, 5-, 6-, 8-, 10-, 12- or 16-pole rated voltage (EN 61984): 160V rated current (T60): 8A rated surge voltage: 4kV rated cross section single-stranded wire: 1.5mm² rated cross section fine-stranded wire: 1.0mm² stripped length: 7mm insulating material: PA temperature range: -30°C to +105°C flammability class: UL94V-0 colour: green Matching box headers straight Matching box headers angled

Specifications

manufacturer
Manufacturer's name AK1550/12-3....
Design screw-cage...
Number of poles 12
Height [mm] 11,1
Pitch [mm] 3,5
T [mm] 15,5
Length [mm] 42,0
Data Sheet

Unit price

2,69 €

Stock: 170
Next incoming goods:
CW 05/2026
150 units

Further delivery:
CW 05/2026

Minimum order quantity 10 units or
multiples of 10.
