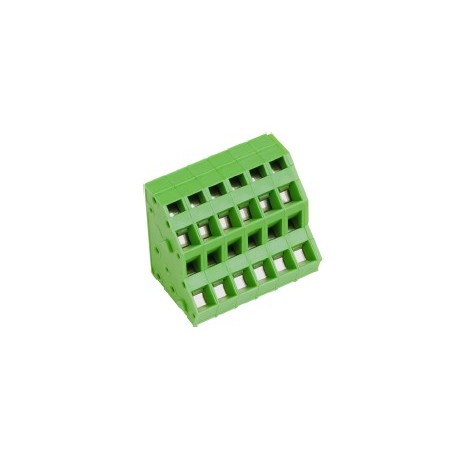

AK 3750/03-5.0

PTR double row spring terminal block series AK3750 and AKZ3750

  • 2- to 6-pole double row spring terminal blocks in green (RAL 6018)
  • with a lever and a 45° wire entry angle
  • suitable for a conductor cross-section of up to 2,5mm²
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 12A
  • pitch AK3750_: 5mm
  • pitch AKZ3750_: 5,08mm
PTR AK3750 series

AK 3750/03-5.0

112368 AK 3750/03-5.0 AK3750/3-5.0-GRÜN AK3750/3-5.0-GRÜN PTR double row spring terminal block series AK3750 and AKZ3750. 2- to 6-pole double row spring terminal blocks in green (RAL 6018) with a lever and a 45° wire entry angle suitable for a conductor cross-section of up to 2,5mm² insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 12A pitch AK3750_: 5mm pitch AKZ3750_: 5,08mm

Specifications

manufacturer
Manufacturer's name AK3750/3-5.0-GRÜN
Design with lever
Depth [mm] 21
Number of poles 3
Height [mm] 25,7
Pitch [mm] 5
Length [mm] 16,7
Data Sheet

Unit price

0,97 €

Stock: 0
Next incoming goods:
CW 24/2024
100 units

Further delivery:
CW 27/2024

Minimum order quantity 10 units or
multiples of 10.
