AK 550/05 DS-3.5-V

PTR terminal block series AK550

  • 2- to 6-pole terminal blocks with a side wire entry
  • screw principle with wire guard
  • insulator is made of PA (UL94V-0)
  • suitable for a cross section single stranded wire of 1,5mm² and a fine stranded wire of 1,0mm²
  • rated voltage: 130V AC
  • rated current: 13,5A
  • pitch: 3,5mm

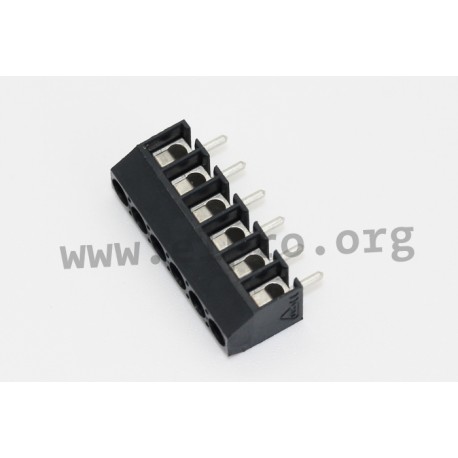

AK550/5DS-3.5-V-GRAU, PTR, RM3,5, 13,5 A, horizontal or vertical

AK 550/05 DS-3.5-V

112466 AK 550/05 DS-3.5-V AK550/5DS-3.5-V-GRAU AK550/5DS-3.5-V-GRAU PTR terminal block series AK550. 2- to 6-pole terminal blocks with a side wire entry screw principle with wire guard insulator is made of PA (UL94V-0) suitable for a cross section single stranded wire of 1,5mm² and a fine stranded wire of 1,0mm² rated voltage: 130V AC rated current: 13,5A pitch: 3,5mm

Specifications

manufacturer
Manufacturer's name AK550/5DS-3....
Depth [mm] 6,5
Number of poles 5
Height [mm] 6,5
Length [mm] 17,5
Data Sheet

Unit price

0,487 €

Stock: 725
Further delivery:
CW 23/2024

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
