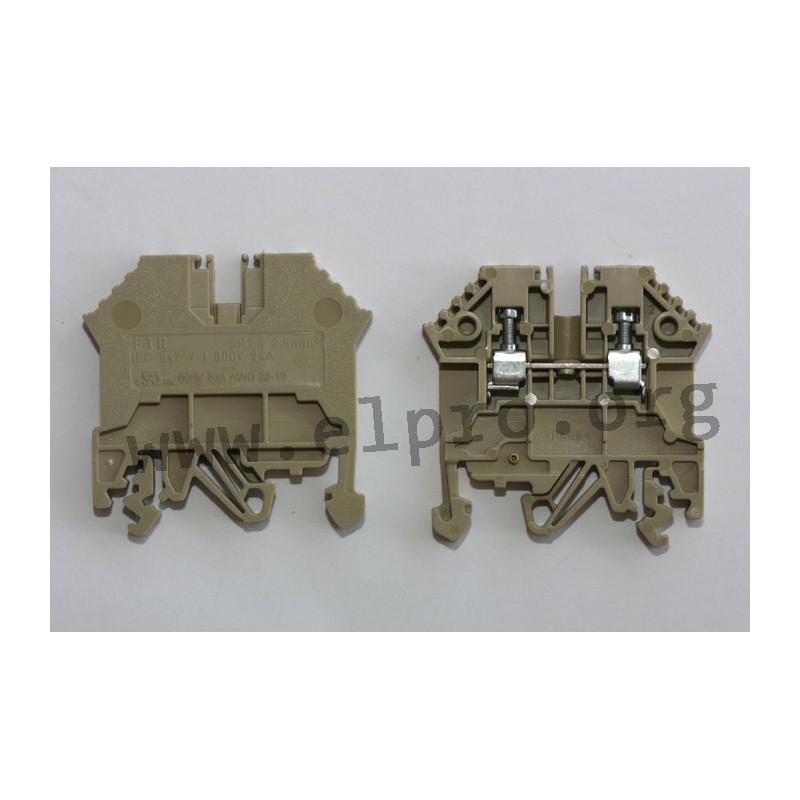

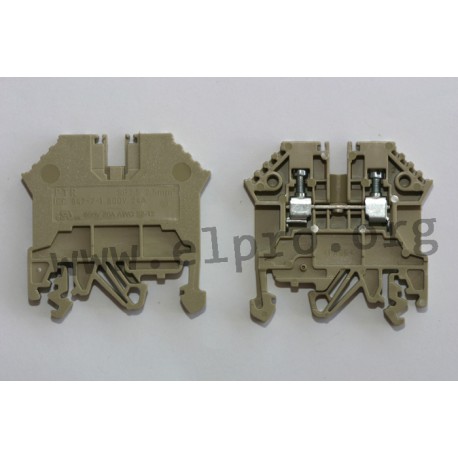

SR 2,5 beige

DIN-rail terminals

• reliable connection of the conductor without any special preparation
• vibration-proof and gastight connections
• connect and disconnect of the conductor by using a screw-driver
• by PTR Messtechnik
• rated voltage UL, CSA: 600V
• rated voltage IEC 947-7-1: 800V
• rated current UL, CSA: 20A
• rated current IEC 947-7-1: 24A
• rated cross section, max. solid wire: 0.2 to 4mm²
• rated cross section, stranded wire: 0.2 to 2.5mm²
• dimensions: 48x5x52mm
• stripped length: 7mm
• tightening torque: 0.7Nm
• colour: beige

SR 2,5 beige by PTR

SR 2,5 beige

13909 SR 2,5 beige 41296.2 41296.2 DIN-rail terminals. • reliable connection of the conductor without any special preparation• vibration-proof and gastight connections• connect and disconnect of the conductor by using a screw-driver• by PTR Messtechnik• rated voltage UL, CSA: 600V• rated voltage IEC 947-7-1: 800V• rated current UL, CSA: 20A• rated current IEC 947-7-1: 24A• rated cross section, max. solid wire: 0.2 to 4mm²• rated cross section, stranded wire: 0.2 to 2.5mm²• dimensions: 48x5x52mm• stripped length: 7mm• tightening torque: 0.7Nm• colour: beige

Specifications

manufacturer
Manufacturer's name 41296.2
Data Sheet

Unit price

0,364 €

Stock: 461
Further delivery:
CW 24/2024

Minimum order quantity 1 unit or multiples of 5 plus 0 to 1 .
