STL 1550/06 G-3,5-H

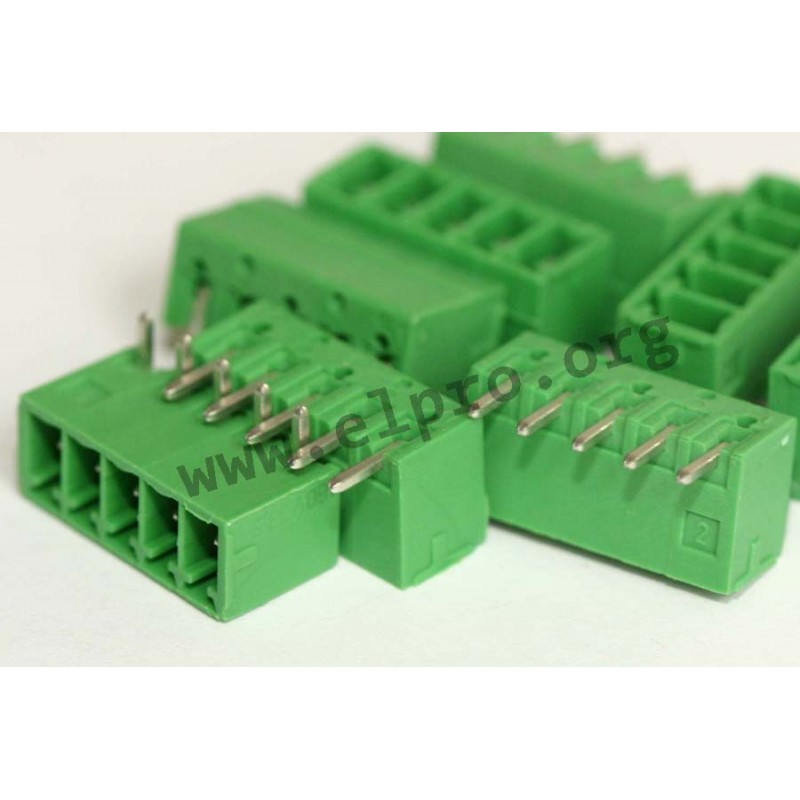

PTR box header series STL1550

  • pin direction: horizontal
  • pitch: 3.5mm
  • 2-, 3-, 4-, 5-, 6-, 8-, 10-, 12- or 16-pole
  • rated voltage (EN 61984): 160V
  • rated current: 10A
  • PCB hole diameter: 1.2mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green

Matching multiconnectors AK1550

Matching multiconnectors AK4551

PTR box headers

STL 1550/06 G-3,5-H

112439 STL 1550/06 G-3,5-H STL1550/6G-3.5-H-GRUEN STL1550/6G-3.5-H-GRUEN PTR box header series STL1550. pin direction: horizontal  pitch: 3.5mm 2-, 3-, 4-, 5-, 6-, 8-, 10-, 12- or 16-pole rated voltage (EN 61984): 160V rated current: 10A PCB hole diameter: 1.2mm insulating material: PA temperature range: -30 to +105°C flammability class: UL94V-0 colour: green Matching multiconnectors AK1550 Matching multiconnectors AK4551

Specifications

manufacturer
Manufacturer's name STL1550/6G-3...
Number of poles 6
Height [mm] 7,0
Pitch [mm] 3,5
T [mm] 9,2
Length [mm] 22,4
Data Sheet

Unit price

0,533 €

Stock: 724
Next incoming goods:
CW 51/2025
170 units

Further delivery:
CW 03/2026

Minimum order quantity 1 to 4 units or multiples of 10 plus 0 to 4 .
