STL 1550/10 G-3,5-V

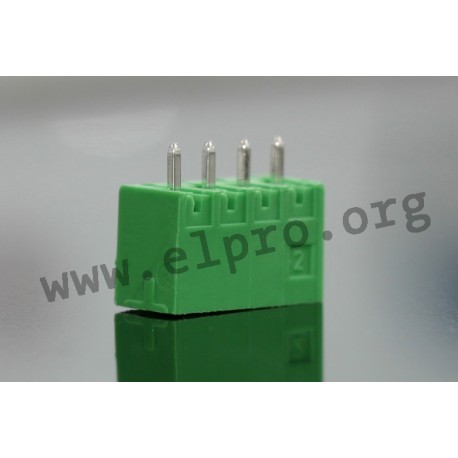

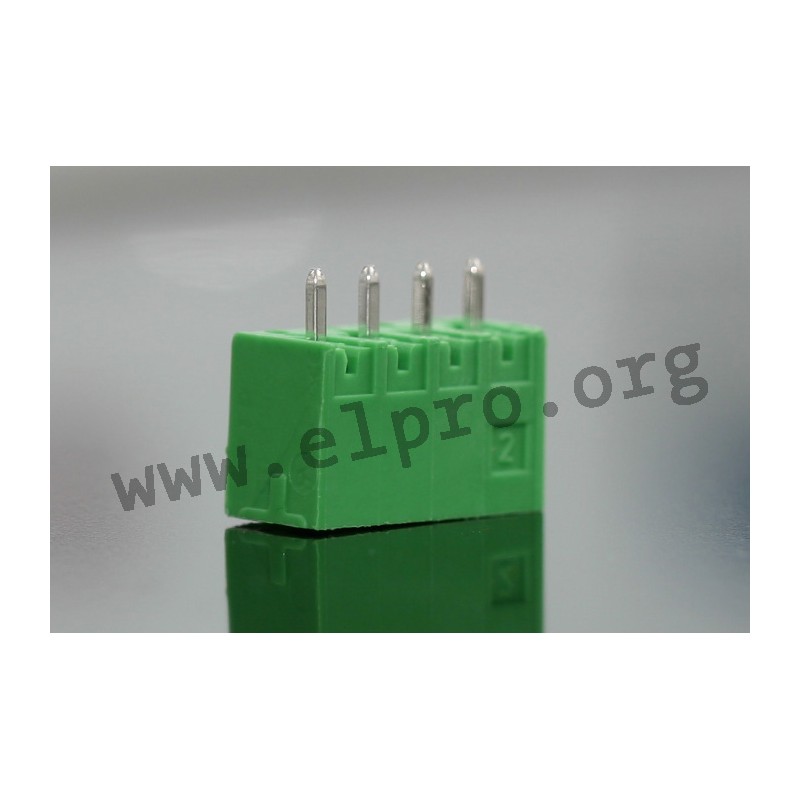

PTR box header series STL1550

  • pin direction: vertical
  • pitch: 3.5mm
  • 2-, 3-, 4-, 5-, 6-, 8- or 10-pole
  • rated voltage (EN 61984): 160V
  • rated current (T60): 9A
  • test voltage: 2.5kV
  • PCB hole diameter: 1.2mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green

Matching multiconnectors

PTR box header

STL 1550/10 G-3,5-V

112442 STL 1550/10 G-3,5-V STL1550/10G-3.5-V-GRUEN STL1550/10G-3.5-V-GRUEN PTR box header series STL1550. pin direction: vertical pitch: 3.5mm 2-, 3-, 4-, 5-, 6-, 8- or 10-pole rated voltage (EN 61984): 160V rated current (T60): 9A test voltage: 2.5kV PCB hole diameter: 1.2mm insulating material: PA temperature range: -30 to +105°C flammability class: UL94V-0 colour: green Matching multiconnectors

Specifications

manufacturer
Manufacturer's name STL1550/10G-...
Number of poles 10
Height [mm] 9,2
Pitch [mm] 3,5
T [mm] 7,0
Length [mm] 36,4
Data Sheet

Unit price

0,859 €

Stock: 5930
Further delivery:
CW 03/2026

Minimum order quantity 10 units or
multiples of 10.
