914 HP

for electronic professions

• test boards with Cu layer made of Laminated Paper or Epoxy resin glass fabric
• for electronic professions in accordance with IHK regulations
• dimensions: 160x100mm
• pitch: 2.54mm
• holes Ø: 1mm
• Cu layer: 35µm
• material thickness: 1.5mm

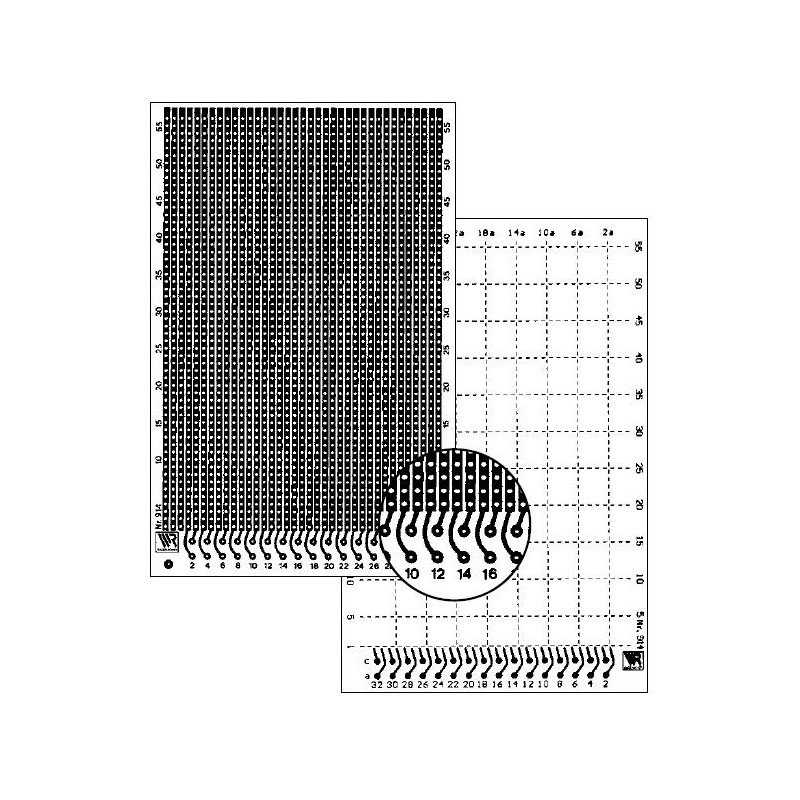

914 HP
• test board for power electronics, equipment/technology
• conductor line: 37
• socket: 32 pin, DIN 41612, housing D, pitch: 2.54mm
• without position print

VK914-HP1, Rademacher, prototyping and test boards, 914 HP

914 HP

30311 914 HP 914-HP1 914-HP1 for electronic professions. • test boards with Cu layer made of Laminated Paper or Epoxy resin glass fabric• for electronic professions in accordance with IHK regulations• dimensions: 160x100mm• pitch: 2.54mm• holes Ø: 1mm• Cu layer: 35µm• material thickness: 1.5mm914 HP• test board for power electronics, equipment/technology• conductor line: 37• socket: 32 pin, DIN 41612, housing D, pitch: 2.54mm• without position print

This product is no longer in stock

Specifications

manufacturer
Manufacturer's name 914-HP1
Material laminated paper
Material Hartpapier
Grid dot matrix
Copper coating one-sided

Unit price

2,49 €

Stock: 0

Minimum order quantity 5 units or
multiples of 5.
