R-78AA6.5-0.5SMD

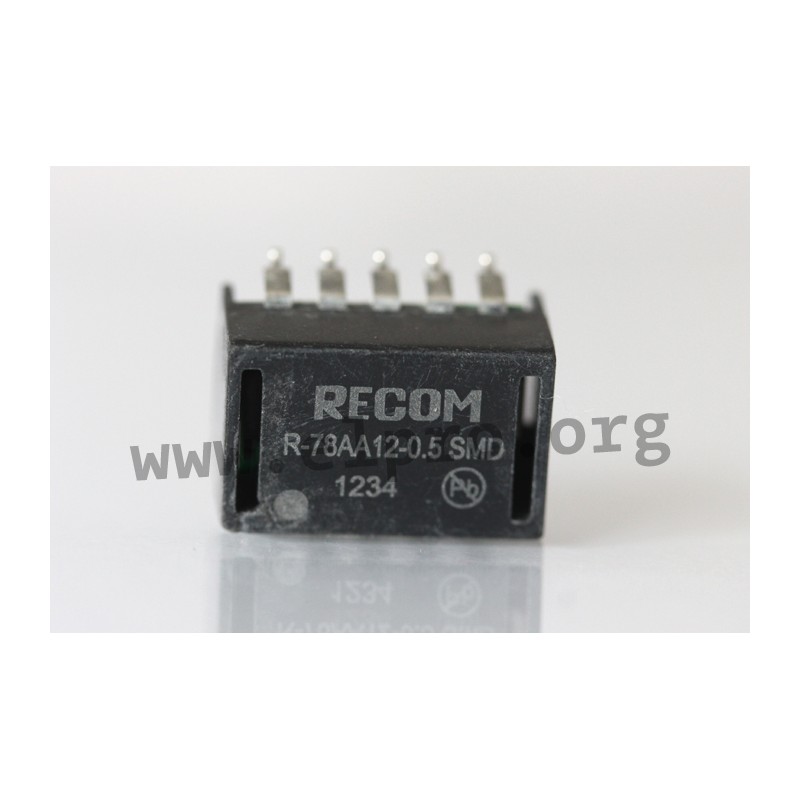

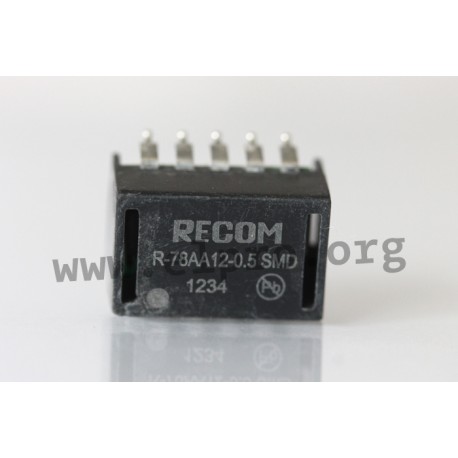

DC/DC-converter-modules R-78AA by Recom

• output: 3.25 W
• SMD housing
• single output
• for direct PCB mounting
• efficiency up to 97%, non isulated, no need for heatsinks
• short circuit protection, thermal shutdown
• low ripple and noise
• adjustable output voltage
• ±3% voltage accuracy (load 20...100%)
• max. ripple & noise: 30 mVpp
• operating temperature: up -40 to +85°C
• by Recom

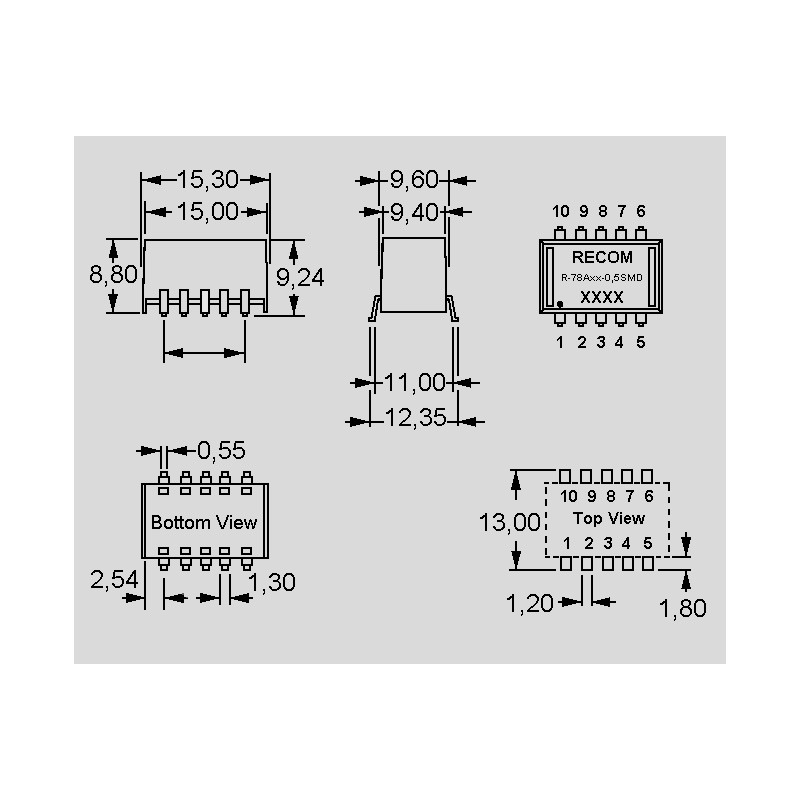

• pin assignment:
pin 1, 2: +UIN
pin 3, 7, 8, 9: GND
pin 4, 5: +UOUT
pin 6: Uadj
pin 10: RemoteOn/Off

R-78AA6.5-0.5SMD

37135 R-78AA6.5-0.5SMD R-78AA6.5-0.5SMD DC/DC-converter-modules R-78AA by Recom. • output: 3.25 W• SMD housing• single output• for direct PCB mounting• efficiency up to 97%, non isulated, no need for heatsinks• short circuit protection, thermal shutdown• low ripple and noise• adjustable output voltage• ±3% voltage accuracy (load 20...100%)• max. ripple & noise: 30 mVpp• operating temperature: up -40 to +85°C• by Recom• pin assignment:pin 1, 2: +UINpin 3, 7, 8, 9: GNDpin 4, 5: +UOUTpin 6: Uadjpin 10: RemoteOn/Off

Specifications

manufacturer
Manufacturer's name R-78AA6.5-0.5SMD
Case SMD case
Input voltage [V] 8...32
Output voltage [V] 6,5
Output current [mA] 500
Efficiency [%] 95...88
Output voltage adjustment [V] 3,3...11
Data Sheet

Unit price

10,19 €

Stock: 210
Further delivery:
CW 33/2024
