R-78HB24-0.3

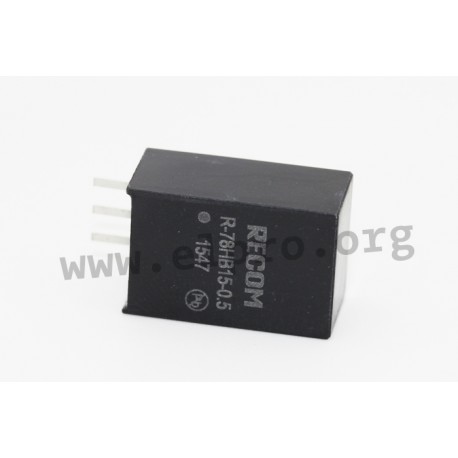

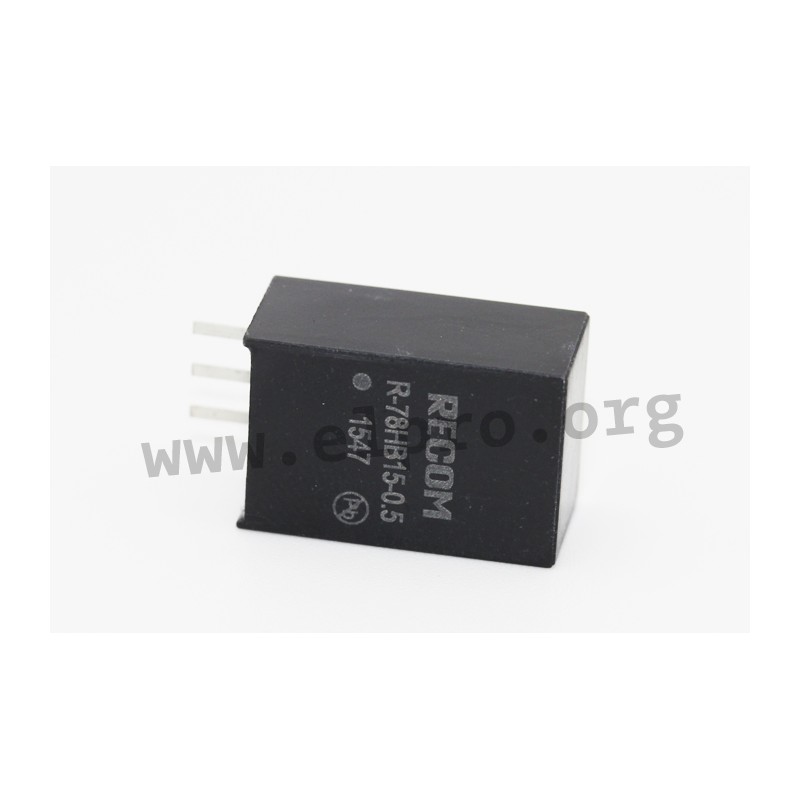

Recom DC/DC converter series R-78HB

DC/DC converters in a SIP/SIL3 housing with 2.5 to 7.5 W output power are designed for direct PCB mounting and have an efficiency of up to 96%. These devices are non-isolated, eliminating the need for heatsinks, and include short circuit protection as well as thermal shutdown capabilities. With low ripple and noise levels, these converters offer ±3% voltage accuracy (load range: 20-100%) along with maximum ripple & noise of only 60mVpp. The suffix "L" denotes models featuring bent pins at a right angle. We offer various types of this Recom series

  • single output
  • output: 2,5 to 12W
  • output voltage tolerance: ±3%
  • maximal ripple and noise: 60mVpp
  • operating temperature: -40 to +85°C
  • weight: 4g
R-78HB_-0.5

R-78HB24-0.3

37119 R-78HB24-0.3 R-78HB24-0.3 Recom DC/DC converter series R-78HB. DC/DC converters in a SIP/SIL3 housing with 2.5 to 7.5 W output power are designed for direct PCB mounting and have an efficiency of up to 96%. These devices are non-isolated, eliminating the need for heatsinks, and include short circuit protection as well as thermal shutdown capabilities. With low ripple and noise levels, these converters offer ±3% voltage accuracy (load range: 20-100%) along with maximum ripple & noise of only 60mVpp. The suffix "L" denotes models featuring bent pins at a right angle. We offer various types of this Recom series single output output: 2,5 to 12W output voltage tolerance: ±3% maximal ripple and noise: 60mVpp operating temperature: -40 to +85°C weight: 4g

Specifications

manufacturer
Manufacturer's name R-78HB24-0.3

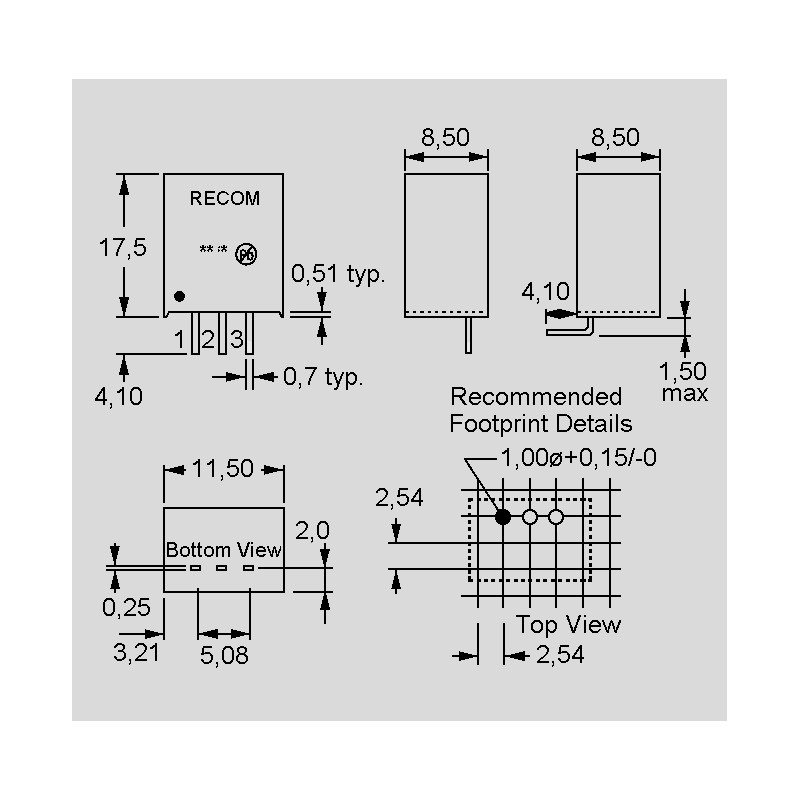

Case SIL 3 case
Input voltage [V] 36...72
Output voltage [V] 24
Output current [mA] 300
Efficiency [%] 96...92
Data Sheet

Unit price

17,09 €

Stock: 170
Further delivery:
CW 04/2026
