R-783.3-1.0

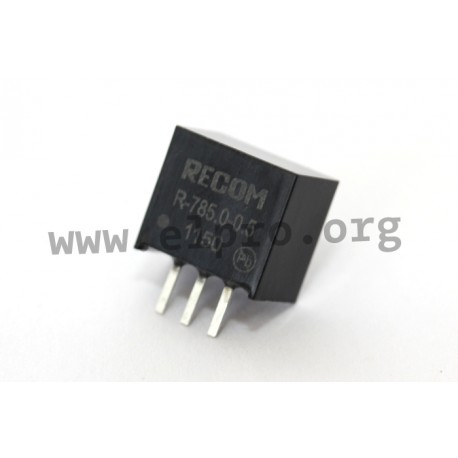

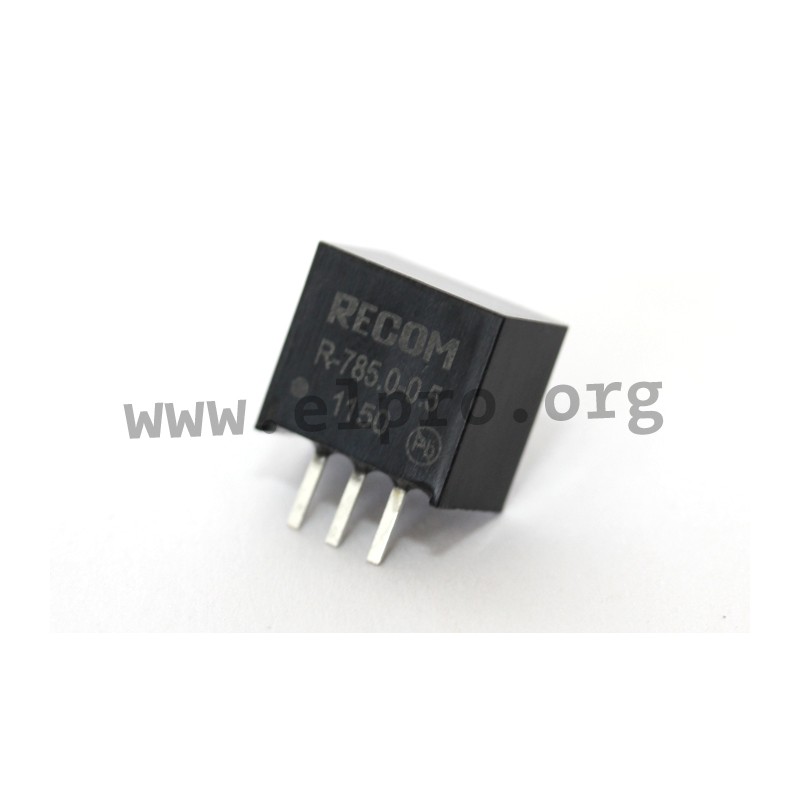

Recom DC/DC converter series R-78xx

DC/DC converters with output power ranging from 0.9 to 7.5 W are housed in SIP/SIL3 housing (UL94-0) and designed for direct PCB mounting. These devices boast an impressive efficiency of up to 97%, which eliminates the need for heatsinks, while maintaining low ripple and noise levels. Additionally, they offer short circuit protection and thermal shutdown features that ensure safe operation under various conditions. The voltage accuracy is ±3% across a load range of 20% to 100%. The operating temperature ranges from -40°C to +85°C, making them suitable for use in harsh environments. We offer various types of this Recom series.

  • single output
  • output: 0,9 to 7,5W
  • output voltage tolerance: ±3%
  • maximal ripple and noise: 30mVpp
  • operating temperature: -40 to +85°C

R-783.3-1.0

42035 R-783.3-1.0 R-783.3-1.0 Recom DC/DC converter series R-78xx. DC/DC converters with output power ranging from 0.9 to 7.5 W are housed in SIP/SIL3 housing (UL94-0) and designed for direct PCB mounting. These devices boast an impressive efficiency of up to 97%, which eliminates the need for heatsinks, while maintaining low ripple and noise levels. Additionally, they offer short circuit protection and thermal shutdown features that ensure safe operation under various conditions. The voltage accuracy is ±3% across a load range of 20% to 100%. The operating temperature ranges from -40°C to +85°C, making them suitable for use in harsh environments. We offer various types of this Recom series. single output output: 0,9 to 7,5W output voltage tolerance: ±3% maximal ripple and noise: 30mVpp operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name R-783.3-1.0
Case SIL 3 case
Input voltage [V] 4,75..18
Output current range [mA] 1000
Efficiency [%] 90...84
Data Sheet

Unit price

8,59 €

Stock: 274
Further delivery:
CW 52/2024
