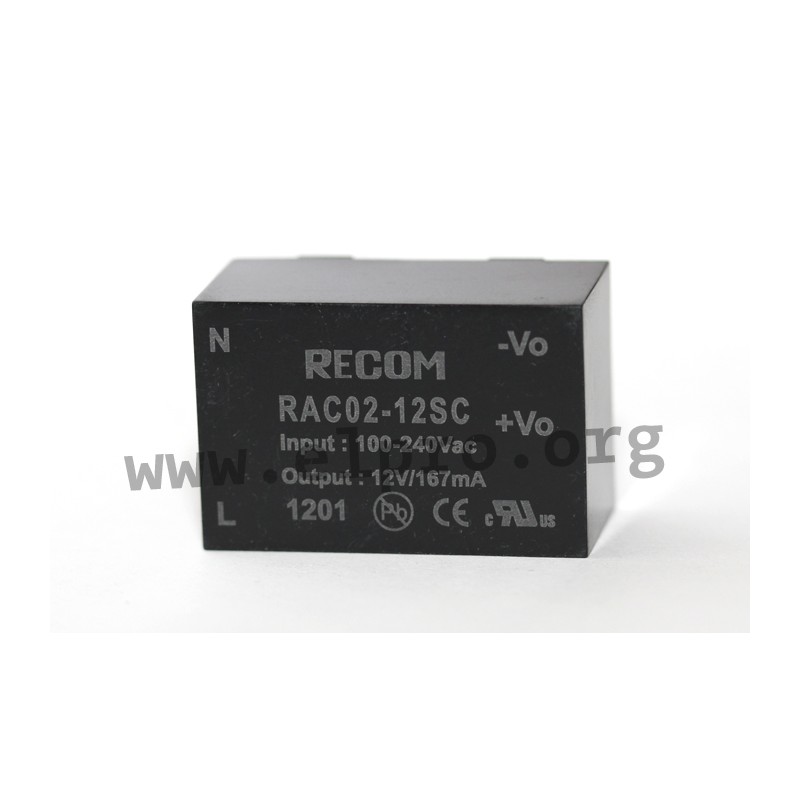

RAC02-12SC

Recom AC/DC converter series RAC02

AC/DC converter modules in an enclosed plastic housing with 2W, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, overtemperature as well as short circuit. We offer the following types of this Recom series: RAC02-3.3SC, RAC02-05SC, RAC02-09SC, RAC02-12SC and RAC02-24SC.

  • single output
  • output: 2W
  • input voltage: 80 to 264V AC (47 to 63Hz), 115 to 370V DC
  • maximal input inrush current: 30/60A (<0,5ms)
  • withstand voltage I/P-O/P: 3000V AC (1min)
  • operating temperature: -25 to +75°C
  • weight: 25g

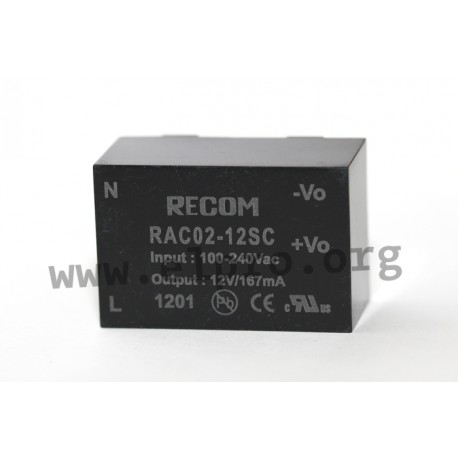

Recom RAC02 series

RAC02-12SC

37089 RAC02-12SC RAC02-12SC Recom AC/DC converter series RAC02. AC/DC converter modules in an enclosed plastic housing with 2W, a universal input and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, overtemperature as well as short circuit. We offer the following types of this Recom series: RAC02-3.3SC, RAC02-05SC, RAC02-09SC, RAC02-12SC and RAC02-24SC. single output output: 2W input voltage: 80 to 264V AC (47 to 63Hz), 115 to 370V DC maximal input inrush current: 30/60A (&lt;0,5ms) withstand voltage I/P-O/P: 3000V AC (1min) operating temperature: -25 to +75°C weight: 25g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name RAC02-12SC
Output voltage [V] 12
Phase 2 phase
Output current range [mA] 167
Efficiency [%] 74
Output voltage tolerance: [%] 5
Output power [W] 2
Ripple [mVp-p] 100
Data Sheet

Unit price

13,59 €

Stock: 43
