RAC05E-05SK

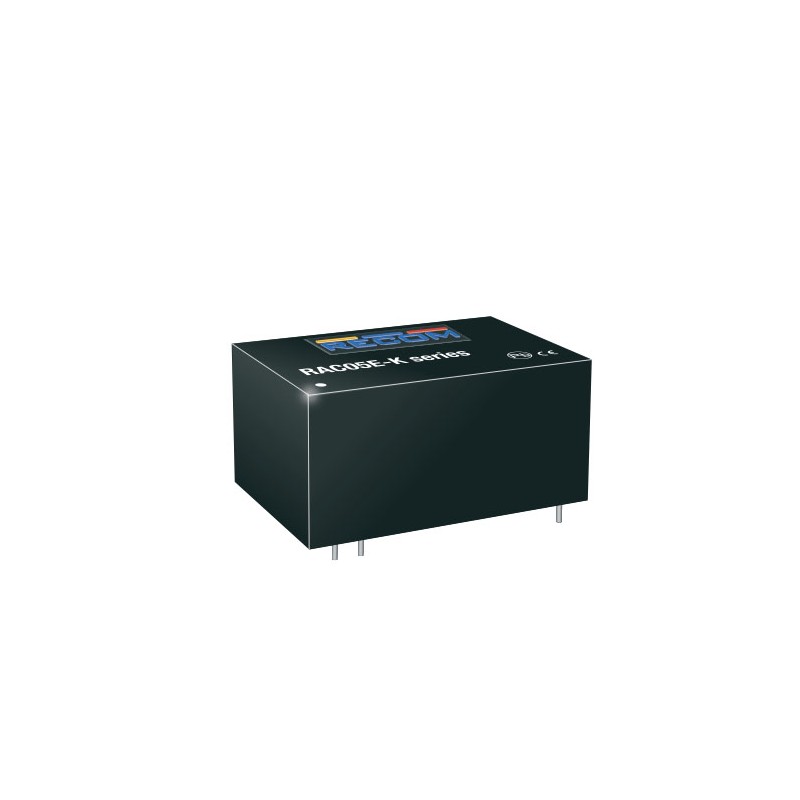

Recom AC/DC converter series RAC05E-K

AC/DC converters in an enclosed plastic housing with 5W, a universal input and a low no-load power (<100mW). These devices have a regulated primary side and are protected against overvoltage as well as short circuit. They have a standard industry pinout, are suitable for PCB mounting and comply with EN62368-1, EN60335-1, EN55032 class A, EN55032 class B as well as EN55014. We offer the following types of this Recom series: RAC05E-05SK, RAC05E-12SK, RAC05E-15SK and RAC05E-24SK.

  • single output
  • output: 5W
  • input voltage: 90 to 264V AC (47 to 63Hz), 130 to 370V DC
  • maximal input inrush current: 10A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -25 to +75°C
  • weight: 26,4g

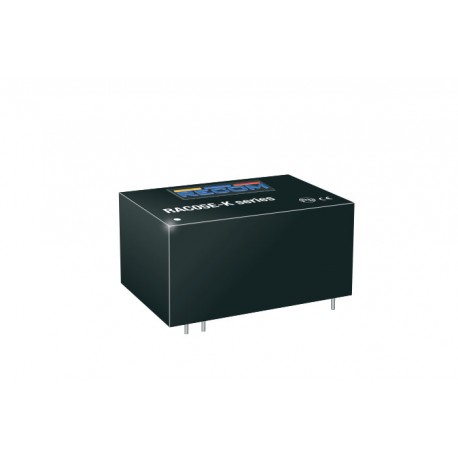

RAC05E-05SK, Recom AC/DC converters, 5W, PCB, RAC05E-K series

RAC05E-05SK

241452 RAC05E-05SK RAC05E-05SK Recom AC/DC converter series RAC05E-K. AC/DC converters in an enclosed plastic housing with 5W, a universal input and a low no-load power (&lt;100mW). These devices have a regulated primary side and are protected against overvoltage as well as short circuit. They have a standard industry pinout, are suitable for PCB mounting and comply with EN62368-1, EN60335-1, EN55032 class A, EN55032 class B as well as EN55014. We offer the following types of this Recom series: RAC05E-05SK, RAC05E-12SK, RAC05E-15SK and RAC05E-24SK. single output output: 5W input voltage: 90 to 264V AC (47 to 63Hz), 130 to 370V DC maximal input inrush current: 10A withstand voltage I/P-O/P: 3000V AC operating temperature: -25 to +75°C weight: 26,4g

Specifications

manufacturer
Manufacturer's name RAC05E-05SK
Output voltage [V] 5
Efficiency [%] 74
Output current [A] 1
Output voltage tolerance: [%] 5
Output power [W] 5
Ripple [mVp-p] 70
Data Sheet

Unit price

7,29 €

Stock: 0
Next incoming goods:
CW 21/2024
12 units

Further delivery:
CW 26/2024
