Recom AC/DC converter series RAC05E-K

AC/DC converters in an enclosed plastic housing with 5W, a universal input and a low no-load power (<100mW). These devices have a regulated primary side and are protected against overvoltage as well as shor...

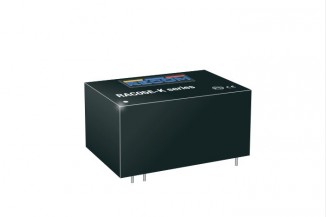

Recom AC/DC converter series RAC05E-K

AC/DC converters in an enclosed plastic housing with 5W, a universal input and a low no-load power (<100mW). These devices have a regulated primary side and are protected against overvoltage as well as short circuit. They have a standard industry pinout, are suitable for PCB mounting and comply with EN62368-1, EN60335-1, EN55032 class A, EN55032 class B as well as EN55014. We offer the following types of this Recom series: RAC05E-05SK, RAC05E-12SK, RAC05E-15SK and RAC05E-24SK.

  • single output
  • output: 5W
  • input voltage: 90 to 264V AC (47 to 63Hz), 130 to 370V DC
  • maximal input inrush current: 10A
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -25 to +75°C
  • weight: 26,4g
> More
Data Sheet
