RACD03-350

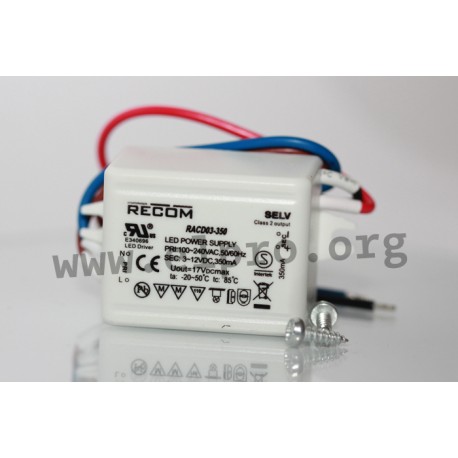

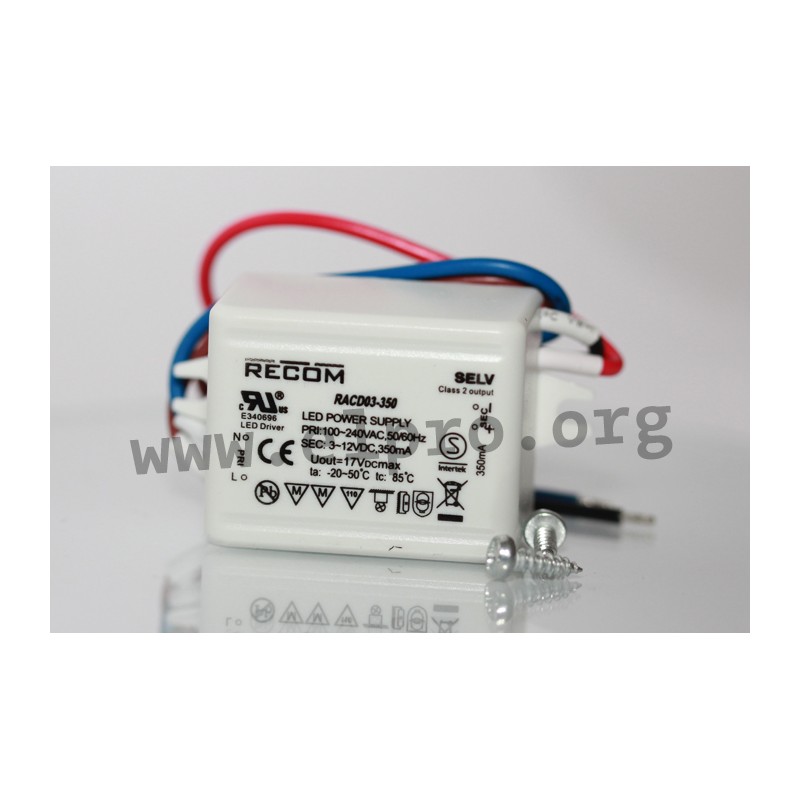

Recom LED driver series RACD03

LED drivers in a plastic housing (IP66) with 3W, a constant current, a universal input and protection class II. These devices are suitable for LED lighting applications and are protected against overload, overvoltage as well as short circuit. They are not dimmable and comply with EN55015, UL8750, UL1310, IEC61347-2-13, EN61347-2-13, IEC61347-1 as well as EN61347-1. We offer the following types of this Recom series: RACD03-350 and RACD03-700.

  • single output
  • output: 3W
  • input voltage: 90 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 10A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +40°C

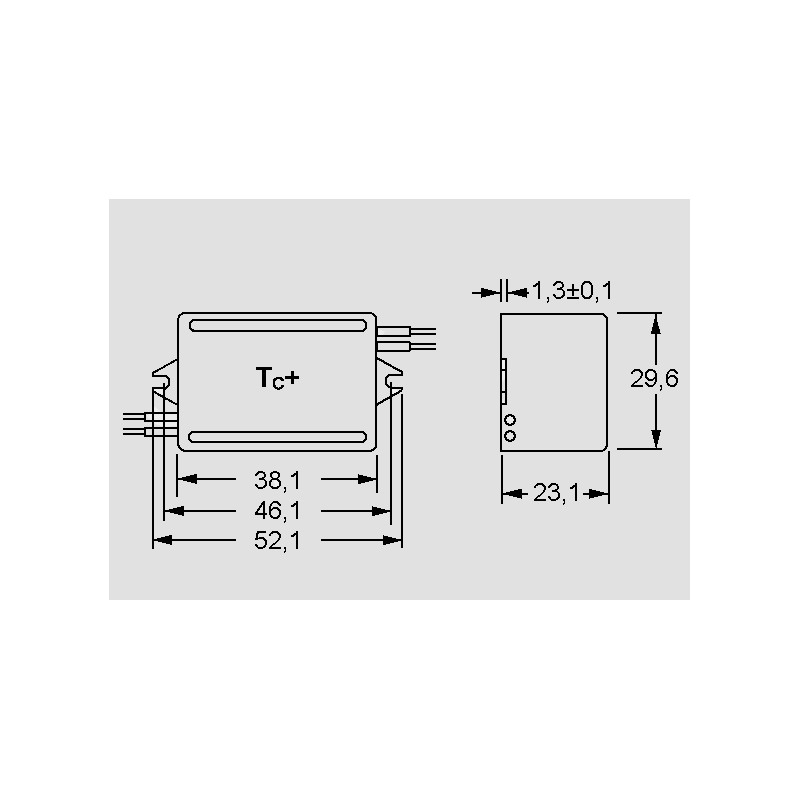

  • dimensions: 52,1x29,6x23,1mm
  • weight: 45g
RACD03-_

RACD03-350

37099 RACD03-350 RACD03-350 Recom LED driver series RACD03. LED drivers in a plastic housing (IP66) with 3W, a constant current, a universal input and protection class II. These devices are suitable for LED lighting applications and are protected against overload, overvoltage as well as short circuit. They are not dimmable and comply with EN55015, UL8750, UL1310, IEC61347-2-13, EN61347-2-13, IEC61347-1 as well as EN61347-1. We offer the following types of this Recom series: RACD03-350 and RACD03-700. single output output: 3W input voltage: 90 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 10A withstand voltage I/P-O/P: 3750V AC operating temperature: -20 to +40°C dimensions: 52,1x29,6x23,1mm weight: 45g

Specifications

manufacturer
Manufacturer's name RACD03-350
Output voltage [V] 2,5...15
Phase 2 phase
Ripple [mAp-p] 100
Output current range [mA] 350
Efficiency [%] 72
Output power [W] 3
Data Sheet

Unit price

12,19 €

Stock: 1478
Further delivery:
CW 28/2024
