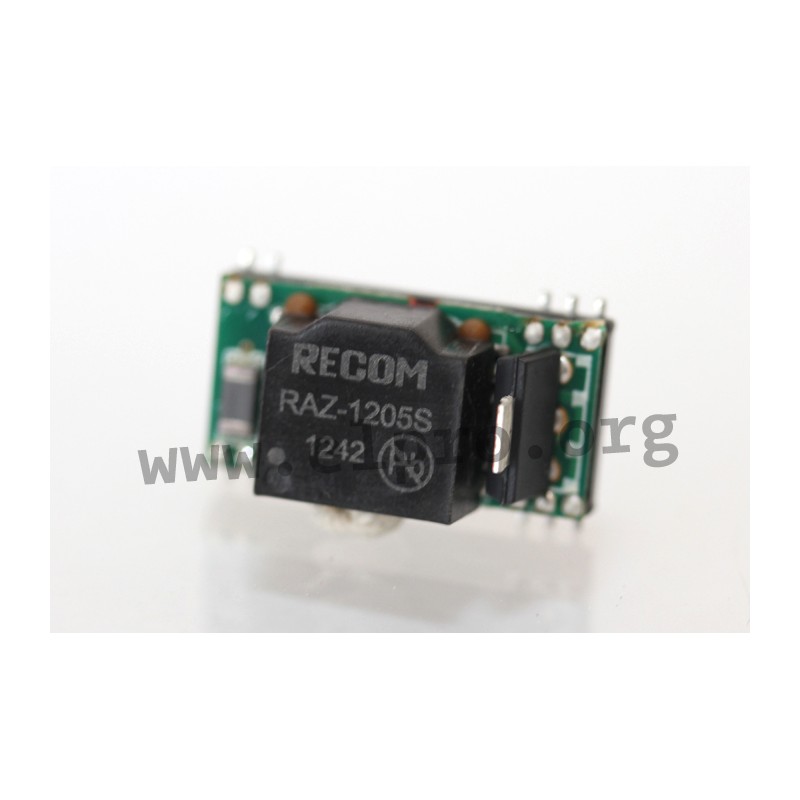

RAZ-1205S

Recom SMD DC/DCconverters series RAZ

These DC/DC converters in a SMD housing are suitable for PCB mounting. They are unregulated and have a high efficiency. We offer the following types of this Recom series: RAZ-0505S and RAZ-1205S.

  • single output
  • open-frame, SMD
  • input voltage ratio: 1:1
  • power: 1W
  • maximal output voltage tolerance: ±5%
  • maximal ripple quality: 75mVpp
  • isolation voltage: 1250V DC
  • operating temperature: -40 to +85°C
  • weight: 1,6g

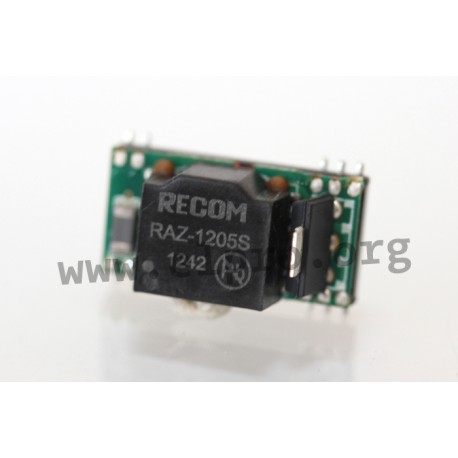

Recom RAZ series

RAZ-1205S

39065 RAZ-1205S RAZ-1205S Recom SMD DC/DCconverters series RAZ. These DC/DC converters in a SMD housing are suitable for PCB mounting. They are unregulated and have a high efficiency. We offer the following types of this Recom series: RAZ-0505S and RAZ-1205S. single output open-frame, SMD input voltage ratio: 1:1 power: 1W maximal output voltage tolerance: ±5% maximal ripple quality: 75mVpp isolation voltage: 1250V DC operating temperature: -40 to +85°C weight: 1,6g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name RAZ-1205S

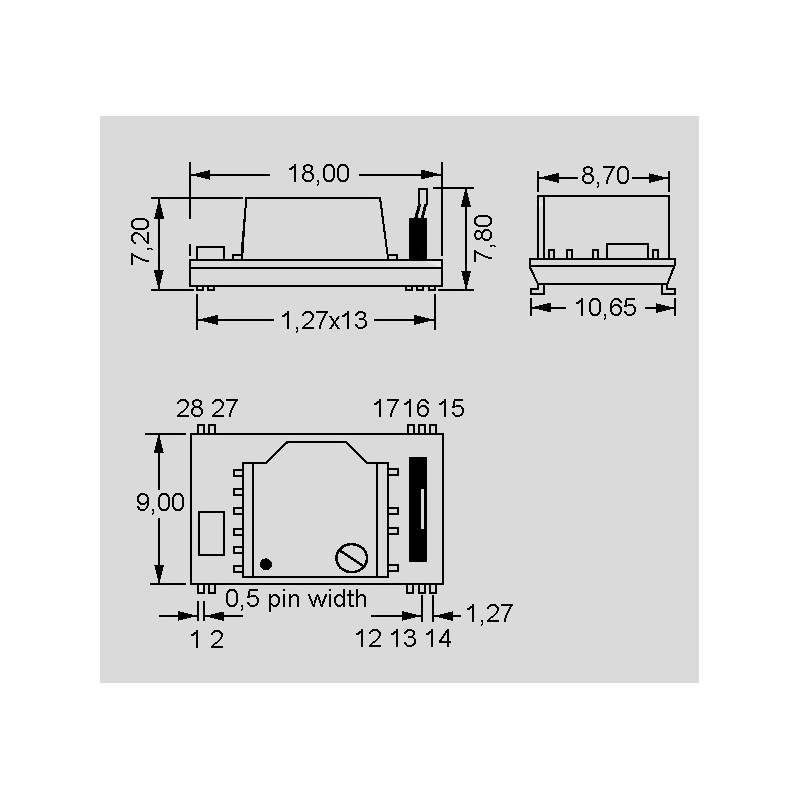

Case SMD-SIL 7 case
Input voltage [V] 12
Output voltage [V] 5
Input voltage range [V] 12
Output current [mA] 200
Efficiency [%] 68
Output current [A] 200
Data Sheet

Unit price

14,59 €

Stock: 1

Minimum order quantity 1 unit or multiples of 27 plus 0 to 1 .
