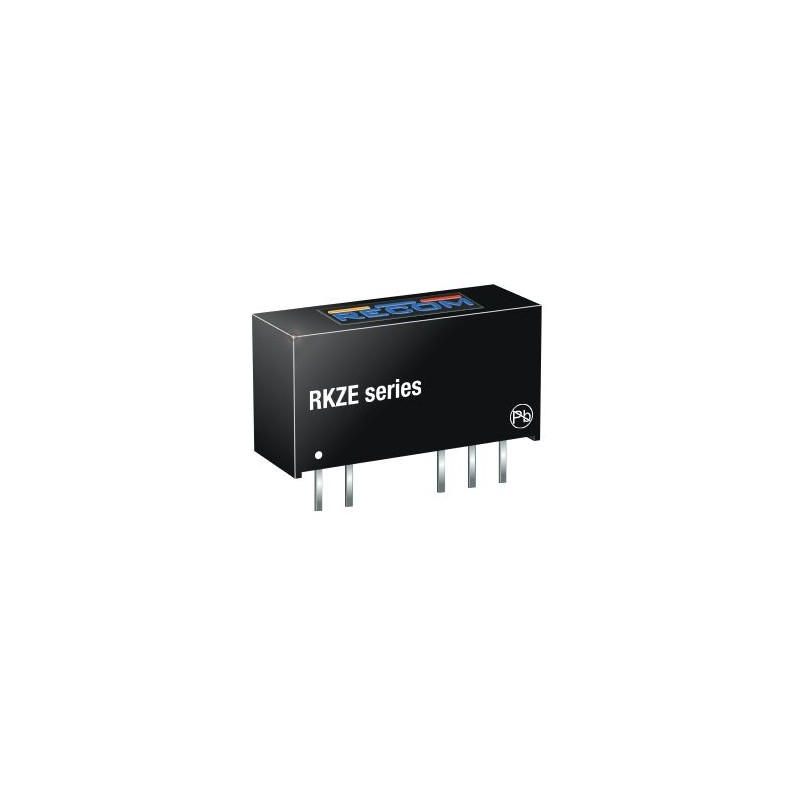

RKZE-1212D

Recom DC/DC converter series RKZE

DC/DC converters (unregulated) by manufacturer Recom with an input/output insulation of 3kV DC and an efficiency of up to 88%. These devices in a SIL7 housing are suited for direct PCB mounting. We offer the types RKZE-0505S, RKZE-0505S/P, RKZE-1205S, RKZE-1212S with single output and the type RKZE-1212D with dual output. The type RKZE-0505S/P has a short circuit protection.

  • single & dual output
  • output: 2W
  • maximal voltage accuracy (load 100%): ±10%
  • operating temperature: -40 to +80°C
  • weight: 2,8g

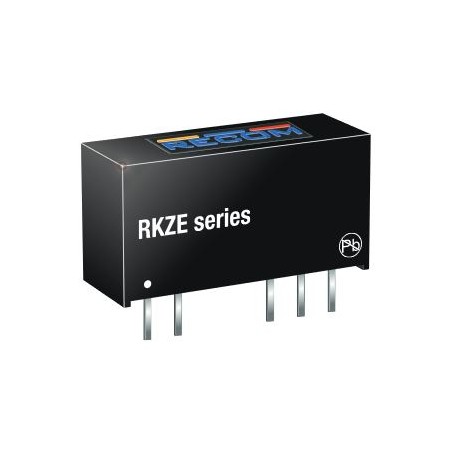

Recom RKZE series

RKZE-1212D

112602 RKZE-1212D RKZE-1212D Recom DC/DC converter series RKZE. DC/DC converters (unregulated) by manufacturer Recom with an input/output insulation of 3kV DC and an efficiency of up to 88%. These devices in a SIL7 housing are suited for direct PCB mounting. We offer the types RKZE-0505S, RKZE-0505S/P, RKZE-1205S, RKZE-1212S with single output and the type RKZE-1212D with dual output. The type RKZE-0505S/P has a short circuit protection. single & dual outputoutput: 2Wmaximal voltage accuracy (load 100%): ±10%operating temperature: -40 to +80°Cweight: 2,8g

Specifications

manufacturer
Manufacturer's name RKZE-1212D
Input voltage [V] 12,0
Output voltage [V] ±12,0
Output current range [mA] ±84
Efficiency [%] 84...85
Ripple [mVp-p] 150
Data Sheet

Unit price

7,49 €

Stock: 34
Further delivery:
CW 38/2024
