RSE-0505S/H2

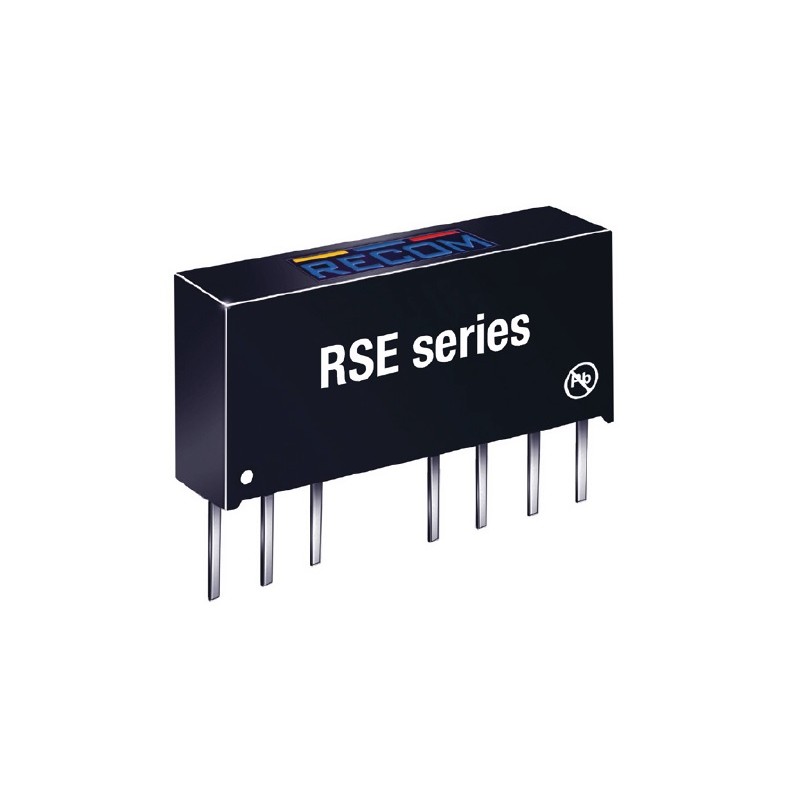

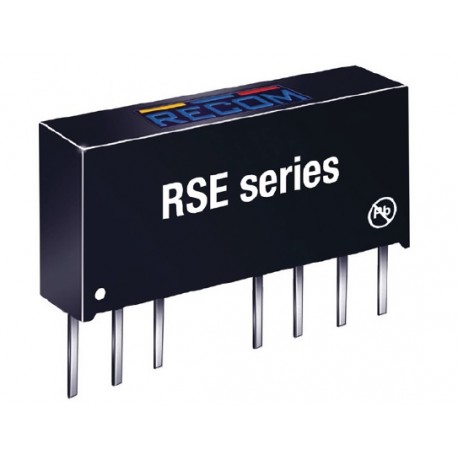

DC/DC-converter modules by Recom

The modules possess a SIP/SIL8 housing and are suitable for direct PCB mounting. Their efficiency is up to 88% and their isolation is 2kV DC. They conform low cost and have a regulated voltage. We are offering the following types by Recom: RSE-0505S/H2 and RSE-2405S/H2.

• voltage accuracy, max. (load 100%): ±2%
• ripple & noise, max.: 75mVpp
• operating temperature: -40 to +75°C

RSE-series

RSE-0505S/H2

108981 RSE-0505S/H2 RSE-0505S/H2 DC/DC-converter modules by Recom. The modules possess a SIP/SIL8 housing and are suitable for direct PCB mounting. Their efficiency is up to 88% and their isolation is 2kV DC. They conform low cost and have a regulated voltage. We are offering the following types by Recom: RSE-0505S/H2 and RSE-2405S/H2.• voltage accuracy, max. (load 100%): ±2%• ripple & noise, max.: 75mVpp• operating temperature: -40 to +75°C

Specifications

manufacturer
Manufacturer's name RSE-0505S/H2
Input voltage [V] 4,5...9
Output voltage [V] 5
Output current range [mA] 400
Efficiency [%] 76
Data Sheet

Unit price

7,49 €

Stock: 66
Further delivery:
CW 15/2026
