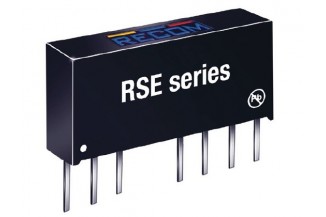

Recom DC/DC converter series RSE

The modules possess a SIP/SIL8 housing and are suitable for direct PCB mounting. Their efficiency is up to 88% and their isolation is 2kV DC. They conform low cost and have a regulated voltage. We are offering the ...

Recom DC/DC converter series RSE

The modules possess a SIP/SIL8 housing and are suitable for direct PCB mounting. Their efficiency is up to 88% and their isolation is 2kV DC. They conform low cost and have a regulated voltage. We are offering the following types by Recom: RSE-0505S/H2 and RSE-2405S/H2.

  • single output
  • output: 2W
  • input voltage ratio: 2:1
  • voltage accuracy (load 100%): ±2%
  • maximal ripple & noise: 75mVpp
  • operating temperature: -40 to +75°C
> More
Data Sheet
