IC 14 M8 8 MHz

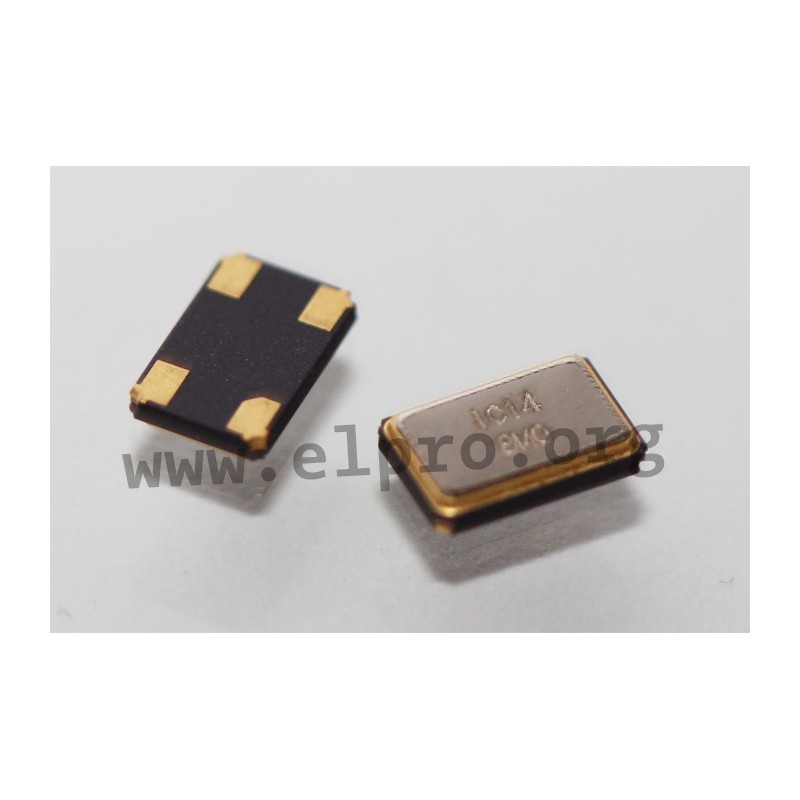

SMD quartz crystals IC14 by Red Frequency

* frequency: 8 to 12 MHz

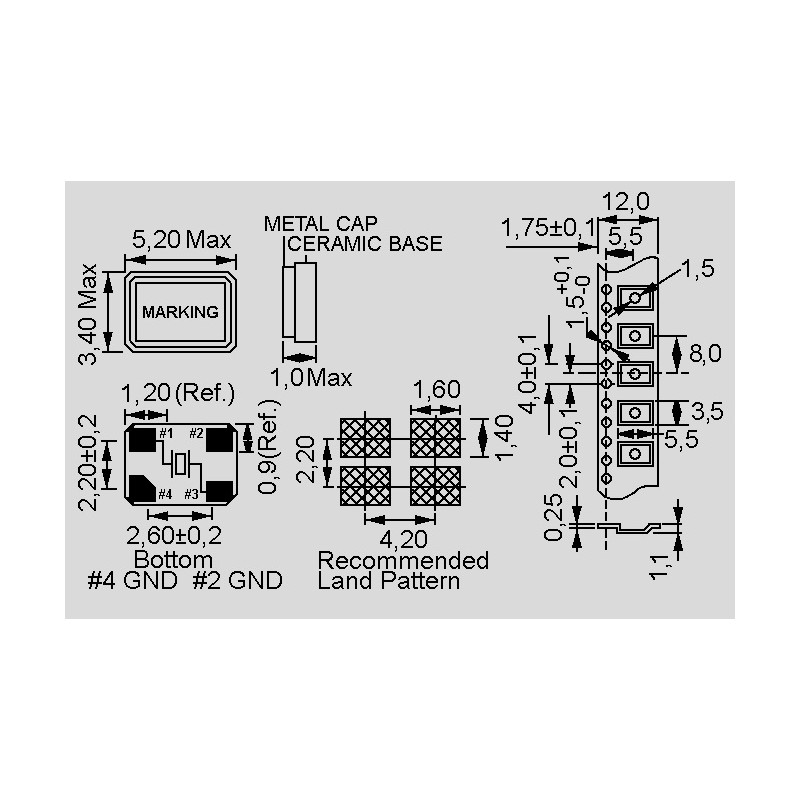

* housing: 5.2x3.4x1 mm
* shunt capacitance, max.: 5 pF
* aging (25°C): ±2 ppm/year
* operating temperature: up -20 to +70°C

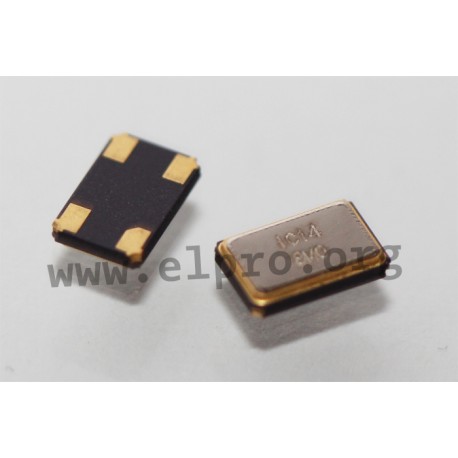

IC 14 M_

IC 14 M8 8 MHz

41674 IC 14 M8 8 MHz IC14008.000M12.0EF1B IC14008.000M12.0EF1B SMD quartz crystals IC14 by Red Frequency. * frequency: 8 to 12 MHz* housing: 5.2x3.4x1 mm* shunt capacitance, max.: 5 pF* aging (25°C): ±2 ppm/year* operating temperature: up -20 to +70°C

Specifications

manufacturer
Manufacturer's name IC14008.000M...
Case 5,2 x 3,4 x 1 mm
Frequency tolerance [ppm] 30
Load capacitance [pF] 12
Equivalent series resistance, max. [Ω] 100
Frequency [MHz] 8
Data Sheet

Unit price

0,854 €

Stock: 1180
Further delivery:
CW 29/2026

Minimum order quantity 5 units or
multiples of 5.
