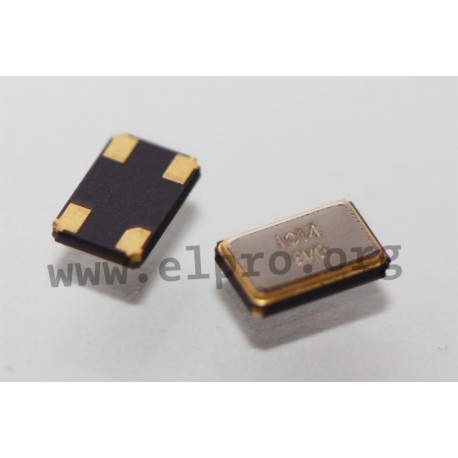

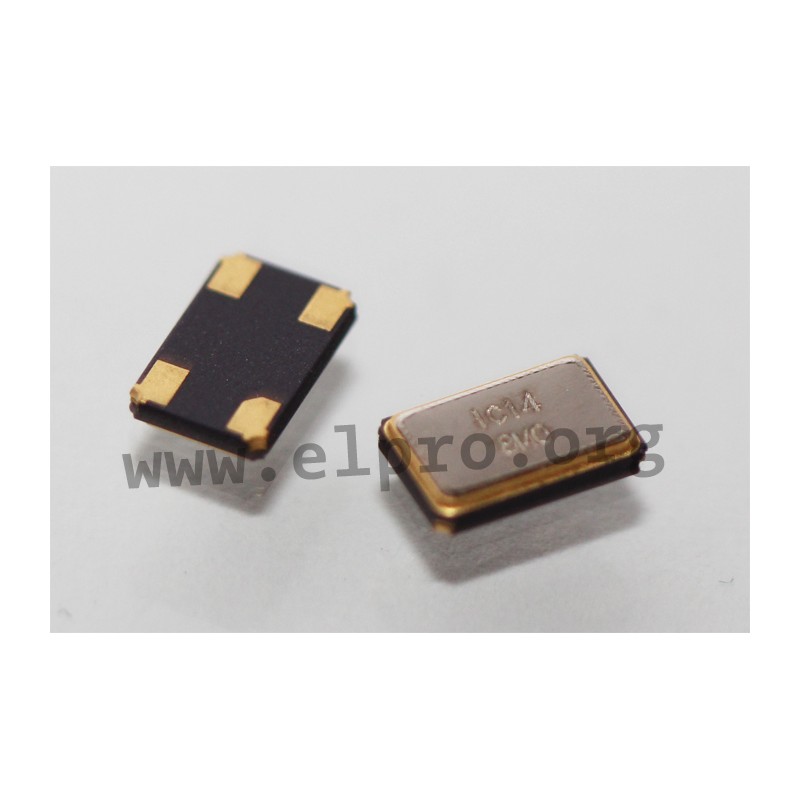

IC 14 M12 12 MHz

SMD quartz crystals IC14 by Red Frequency

* frequency: 8 to 12 MHz
* housing: 5.2x3.4x1 mm
* shunt capacitance, max.: 5 pF
* aging (25°C): ±2 ppm/year
* operating temperature: up -20 to +70°C

IC 14 M12 12 MHz

IC 14 M12 12 MHz

41675 IC 14 M12 12 MHz IC14012.000M12.0EF1B IC14012.000M12.0EF1B SMD quartz crystals IC14 by Red Frequency. * frequency: 8 to 12 MHz* housing: 5.2x3.4x1 mm* shunt capacitance, max.: 5 pF* aging (25°C): ±2 ppm/year* operating temperature: up -20 to +70°C

Specifications

manufacturer
Manufacturer's name IC14012.000M...

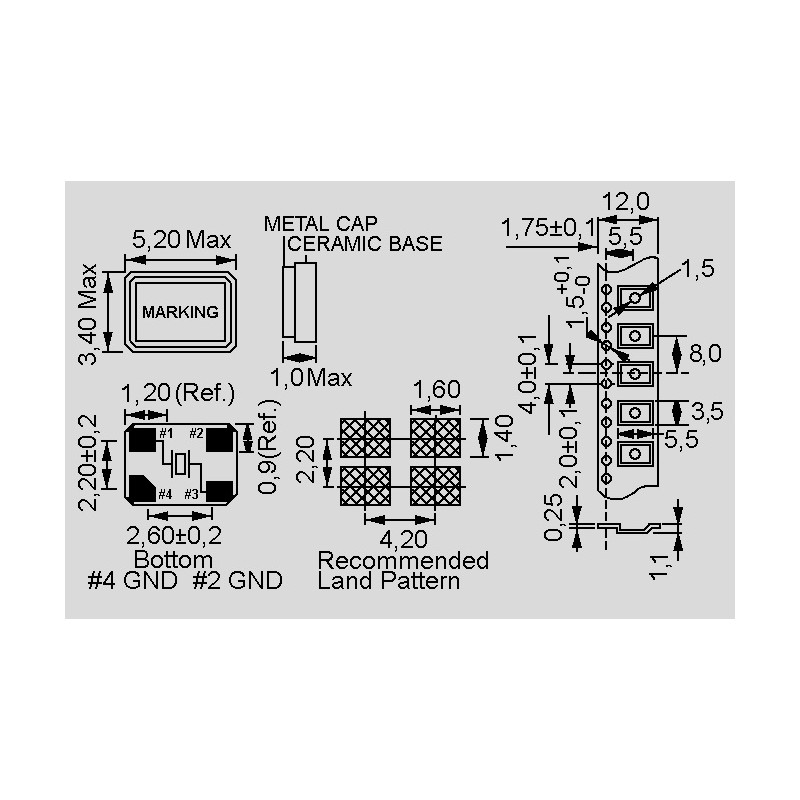

Case 5,2 x 3,4 x 1 mm
Frequency tolerance [ppm] 30
Load capacitance [pF] 12
Frequency [MHz] 12
Equivalent series resistance, max. [Ω] 100
Data Sheet

Unit price

0,812 €

Stock: 30
Next incoming goods:
CW 37/2026
1000 units

Further delivery:
CW 52/2026

Minimum order quantity 5 units or
multiples of 5.
