> Passive elements>Quartz crystals / oscillators>Quartz crystals>Red Frequency quartz crystals, SMD, metal housing, 5,2x3,4x1,1mm, IC 15 series>IC 15 M25 25 MHz

Manufacturers

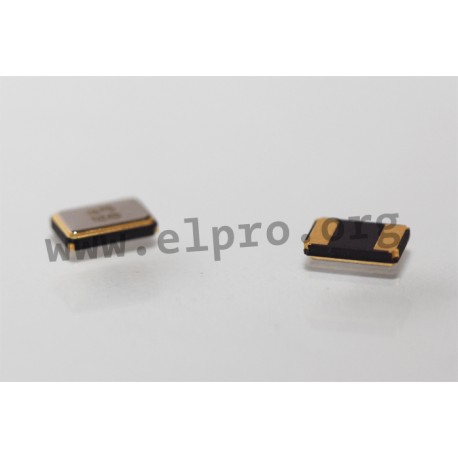

IC 15 M25 25 MHz

SMD quartz crystals IC15 by Red Frequency

* frequency: 8 to 40 MHz
* housing: 5.2x3.4x1.1 mm
* shunt capacitance, max.: 5 pF
* aging (25°C): ±2 ppm/year
* operating temperature: up -20 to +70°C
Series IC 15 by Red Frequency

IC 15 M25 25 MHz

46129 IC 15 M25 25 MHz IC15025.000M20.0CE1B IC15025.000M20.0CE1B SMD quartz crystals IC15 by Red Frequency. * frequency: 8 to 40 MHz* housing: 5.2x3.4x1.1 mm* shunt capacitance, max.: 5 pF* aging (25°C): ±2 ppm/year* operating temperature: up -20 to +70°C

Specifications

manufacturer
Manufacturer's name IC15025.000M...
Case 5,2 x 3,4 x 1,1 mm
Frequency tolerance [ppm] 20
Load capacitance [pF] 20
Equivalent series resistance, max. [Ω] 60
Frequency [MHz] 25

Unit price

0,518 €

Stock: 450
Further delivery:
CW 01/2027

Minimum order quantity 5 units or
multiples of 5.
