IC21-7.3728M-AF-30/30-90R-32P

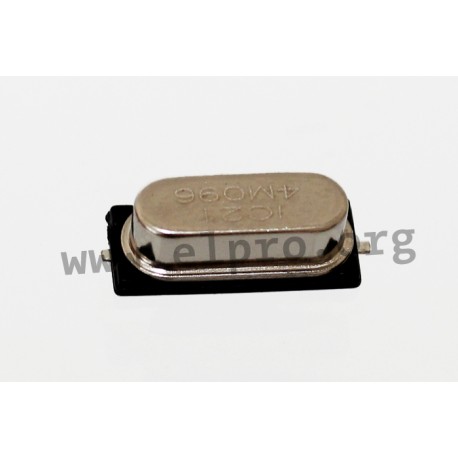

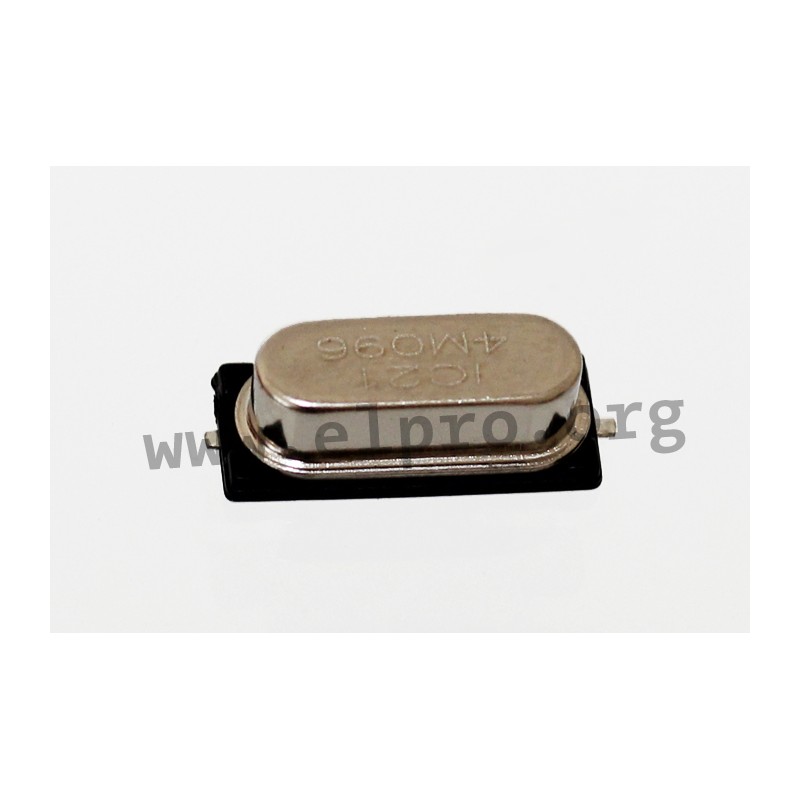

Red Frequency quartz crystal series IC 21

  • quartz crystals in an HC 49 S4 SMD housing
  • suitable for direct PCB mounting
  • maximal shunt capacitance: 7pF
  • maximal drive level: 1mW
  • aging: ±3ppm/Jahr
  • frequency: 3,579 to 32MHz
IC21

IC21-7.3728M-AF-30/30-90R-32P

43248 IC21-7.3728M-AF-30/30-90R-32P IC2107.3728M32.0EE1B IC2107.3728M32.0EE1B Red Frequency quartz crystal series IC 21. quartz crystals in an HC 49 S4 SMD housing suitable for direct PCB mounting maximal shunt capacitance: 7pF maximal drive level: 1mW aging: ±3ppm/Jahr frequency: 3,579 to 32MHz

Specifications

manufacturer
Manufacturer's name IC2107.3728M...
Case HC49/S4
Load capacitance [pF] 32
Frequency [MHz] 7,3728
Equivalent series resistance, max. [Ω] 100
Frequency tolerance [ppm] ±30
Data Sheet

Unit price

0,174 €

Stock: 4070
Further delivery:
CW 27/2024

Minimum order quantity 10 units or
multiples of 10.
