IC 8 K32.768

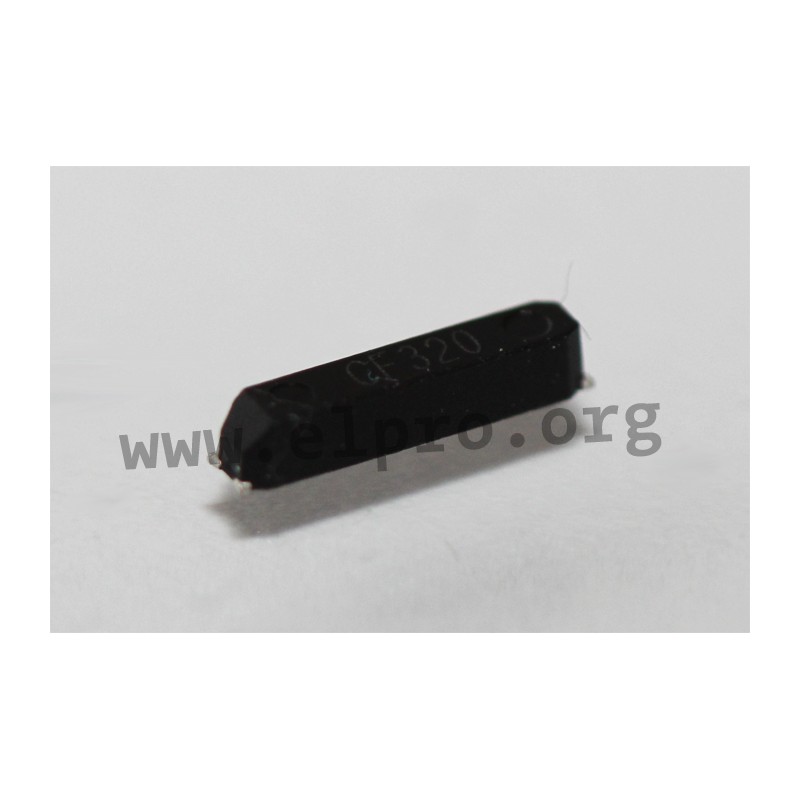

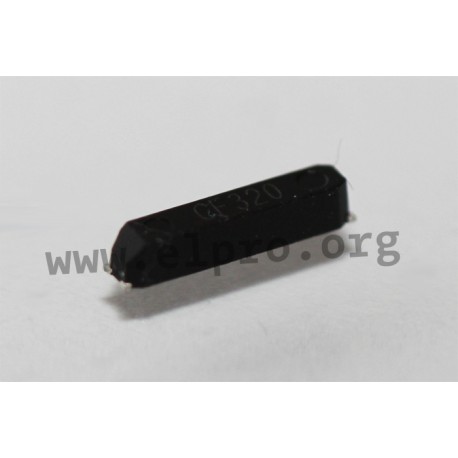

Red Frequency clock quartz crystal series IC6, IC8 and IC9

  • clock quartz crystals with a frequency tolerance of ±20ppm
  • suitable for direct PCB mounting (SMD)
  • frequency: 32,768kHz

IC 8 K32.768

41698 IC 8 K32.768 IC8032.768K12.5CH1E IC8032.768K12.5CH1E Red Frequency clock quartz crystal series IC6, IC8 and IC9. clock quartz crystals with a frequency tolerance of ±20ppm suitable for direct PCB mounting (SMD) frequency: 32,768kHz

Data sheet

manufacturer
manufacturer's name IC8032.768K12.5CH1E
case SMD
operating temperature range [°C] -40...+85
(TU=25°C) ±20ppm
load capacitance [pF] 12,5
frequency tolerance [ppm] ±20ppm
frequency [kHz] 32,768

Download

Data Sheet

2,69 €

Volume discounts

10 pcs. / 0,716 €

stock: 1470
