> Passive elements>Quartz crystals / oscillators>Quartz oscillators>Red Frequency quartz oscillators, SMD, metal housing, 5,2x3,4x1,2mm, IO 14 and IO 16 series>IO 16 8 MHz

Manufacturers

IO 16 8 MHz

SMD crystal oscillators IO16 by Red Frequency

• frequency: 4 to 100 MHz

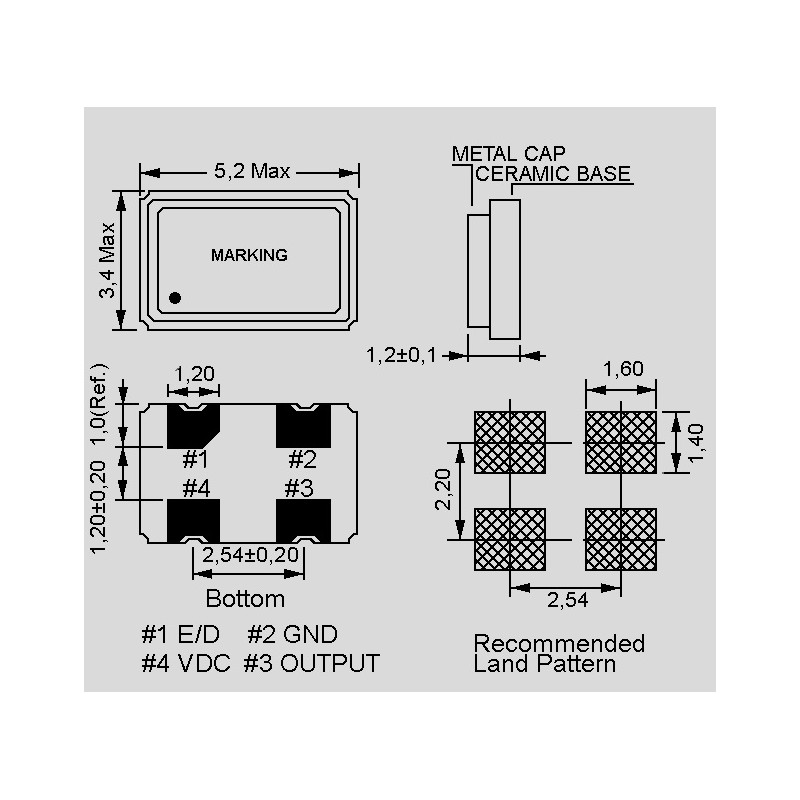

• in metal housing, 5.2x3.4x1.2mm
• consisting of piezoelectric resonator and oscillator circuit
• high reliability due to hermetically sealed metal housing
• tristate
• frequency stability (up -20 to +70°C): ±50ppm
• temperature range: up -20 to +70°C
• suitable for CMOS/TTL
• operating voltage (VDD): 5 Volt DC
• maximum current requirement: 10 mA

IO 16

IO 16 8 MHz

46217 IO 16 8 MHz IO16008.000M05.0EB IO16008.000M05.0EB SMD crystal oscillators IO16 by Red Frequency. • frequency: 4 to 100 MHz• in metal housing, 5.2x3.4x1.2mm• consisting of piezoelectric resonator and oscillator circuit• high reliability due to hermetically sealed metal housing• tristate• frequency stability (up -20 to +70°C): ±50ppm• temperature range: up -20 to +70°C• suitable for CMOS/TTL• operating voltage (VDD): 5 Volt DC• maximum current requirement: 10 mA

Specifications

manufacturer
Manufacturer's name IO16008.000M05.0EB
Case 5,2 x 3,4 x 1,2 mm
Frequency [MHz] 8
Data Sheet

Unit price

0,968 €

Stock: 225
Further delivery:
CW 29/2024

Minimum order quantity 5 units or
multiples of 5.
