ITS-LS 3830b D 24V

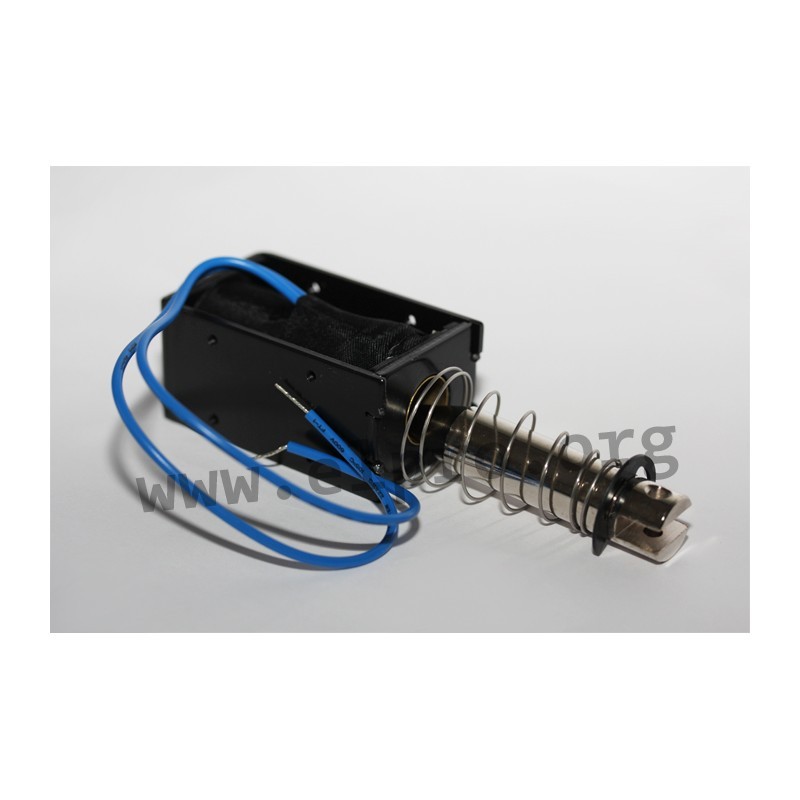

Red Magnetics electromagnet series ITS-LS

Framed magnets in an open-frame housing with a closed brace and mounting holes. These magnets have a stranded wire connection (200mm) and a return spring. They are available as push or pull magnets and are lightweight. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,019 to 1,333A
  • rated power: 1,1 to 16W
  • holding force: 0,120 to 5,6kg
ITS-LS 3830b D

ITS-LS 3830b D 24V

32700 ITS-LS 3830b D 24V ITS-LS-3830B-D-24VDC ITS-LS-3830B-D-24VDC Red Magnetics electromagnet series ITS-LS. Framed magnets in an open-frame housing with a closed brace and mounting holes. These magnets have a stranded wire connection (200mm) and a return spring. They are available as push or pull magnets and are lightweight. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,019 to 1,333A rated power: 1,1 to 16W holding force: 0,120 to 5,6kg

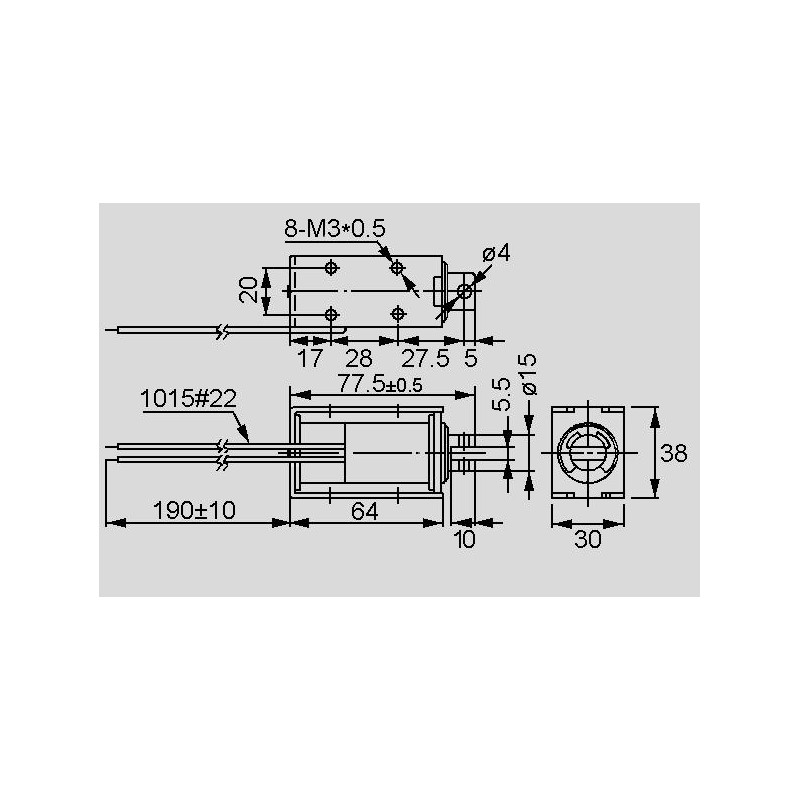

Specifications

manufacturer
Manufacturer's name ITS-LS-3830B...
Design pushing...
Rated current [mA] 333
Weight anchor [g] 71
Nominal capacity [A] 8
Ultimate power [kg] 5,6
Thread 2-4*M3*0,5
Magnet weight [g] 363
Starting power [kg] 0,2
Holding force [kg] 5,6
Diameter [mm] 30x38
Length [mm] 64
Data Sheet

Unit price

22,49 €

Stock: 43
Further delivery:
CW 20/2026
