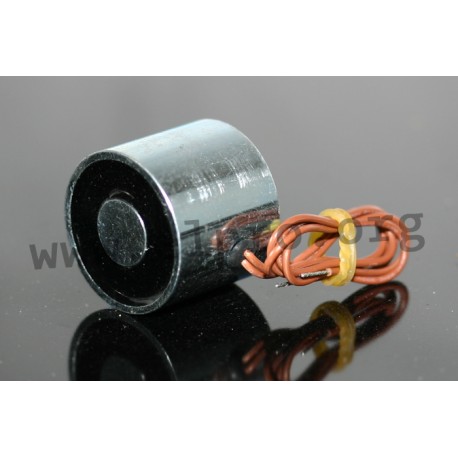

ITS-MS 3025 24V

Red Magnetics electromagnet series ITS-MS

Holding magnets in an enclosed housing with rear mounting holes. These solenoids have a stranded wire connection (min. 200mm) and are fully encapsulated. They have an M3x0,5mm (ITS-MS 20_ / ITS-MS 30_) resp. an M4x0,7mm (ITS-MS 50_) mounting thread and are suitable for a broad range of applications. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,104 to 0,667A
  • rated power: 2,5 to 8W
  • holding force: 20 to 400N
ITS-MS 3025 24V

ITS-MS 3025 24V

32690 ITS-MS 3025 24V ITS-MS-3025-24VDC ITS-MS-3025-24VDC Red Magnetics electromagnet series ITS-MS. Holding magnets in an enclosed housing with rear mounting holes. These solenoids have a stranded wire connection (min. 200mm) and are fully encapsulated. They have an M3x0,5mm (ITS-MS 20_ / ITS-MS 30_) resp. an M4x0,7mm (ITS-MS 50_) mounting thread and are suitable for a broad range of applications. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,104 to 0,667A rated power: 2,5 to 8W holding force: 20 to 400N

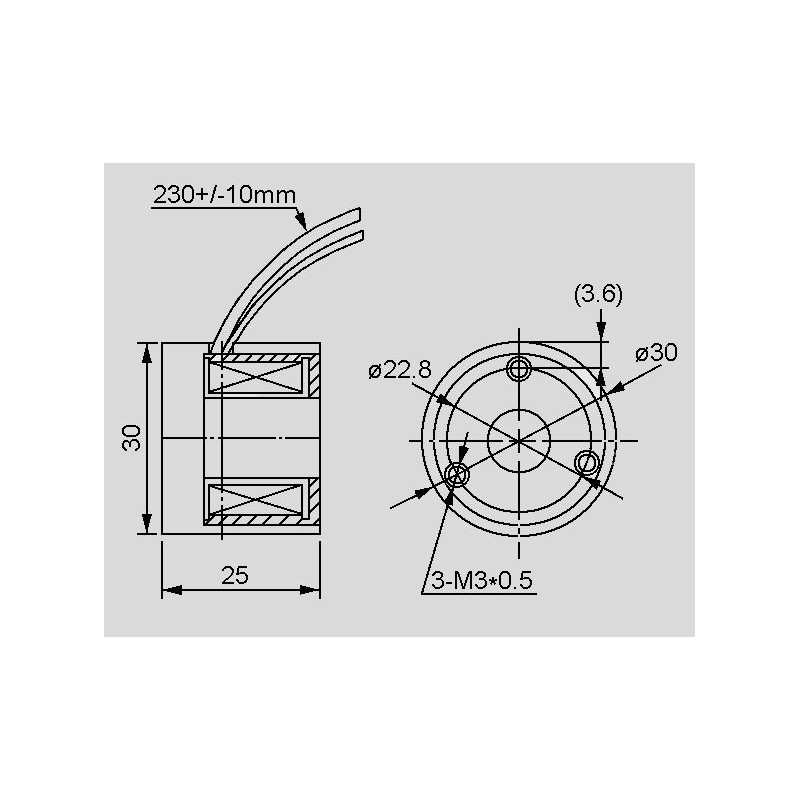

Specifications

manufacturer
Manufacturer's name ITS-MS-3025-24VDC
Rated current [mA] 158
Thread M3x0,5
Holding force [kg] 10
Diameter [mm] 30
Nominal capacity [W] 3,8
Length [mm] 25
Data Sheet

Unit price

18,19 €

Stock: 81
Further delivery:
CW 39/2024
