NW-SMD 470 k 0804

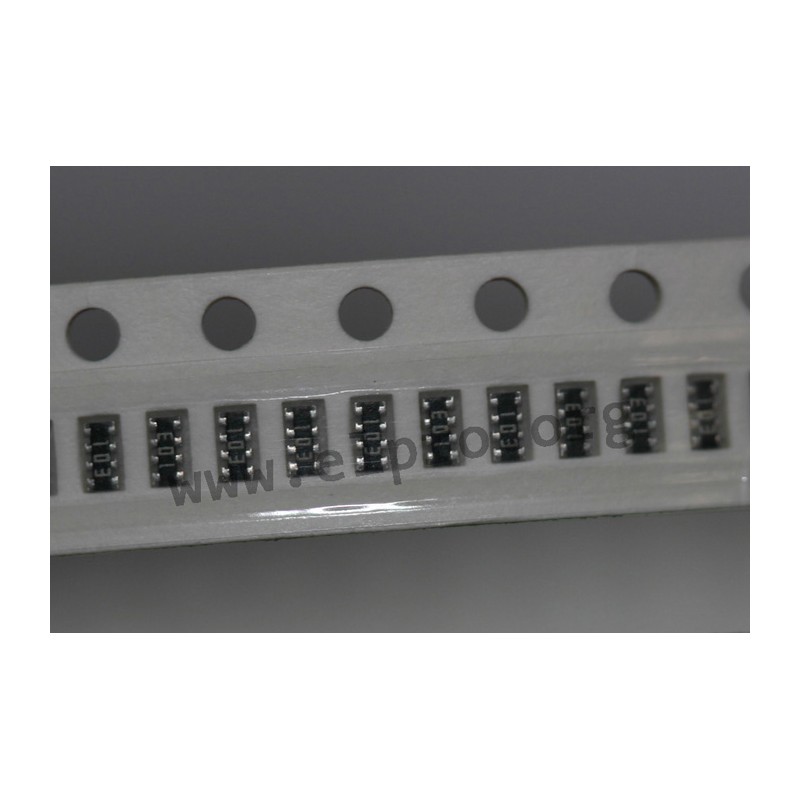

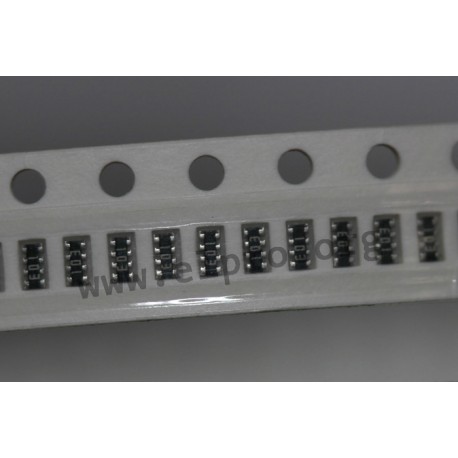

SMD resistor networks MNR04 by Rohm

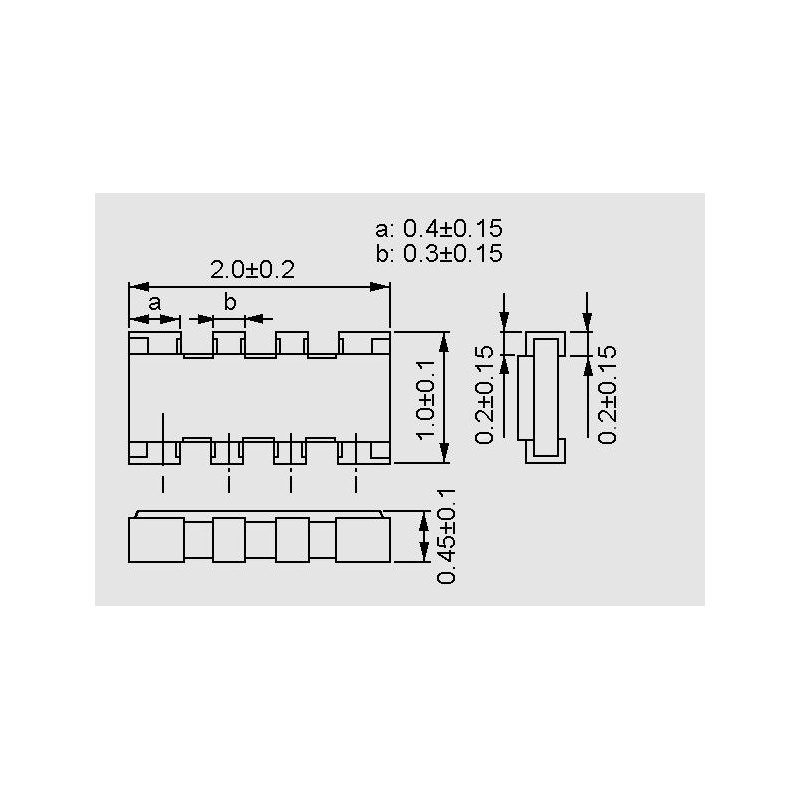

• housing: 4x0402
• power: 0.063W
• tolerance: 5%
• for high-density mounting
• convex terminations
• 8 terminal package with 4 isolated resistors
• operating voltage, max.: 50V


• insulation resistance: 10MΩ
• insulation voltage (1 min): 100V AC/DC
• temperature coefficient: ±200ppm/K
• temperature range: - 55°C...+155°C
• derating: linear from 70°C to 155°C (0W)
• by Rohm

NW-SMD 470 k 0804

14545 NW-SMD 470 k 0804 MNR04M0APJ474 MNR04M0APJ474 SMD resistor networks MNR04 by Rohm. • housing: 4x0402• power: 0.063W• tolerance: 5%• for high-density mounting• convex terminations• 8 terminal package with 4 isolated resistors• operating voltage, max.: 50V • insulation resistance: 10MΩ• insulation voltage (1 min): 100V AC/DC• temperature coefficient: ±200ppm/K• temperature range: - 55°C...+155°C• derating: linear from 70°C to 155°C (0W)• by Rohm

Specifications

manufacturer
Manufacturer's name MNR04M0APJ474
Design 4x0402
Resistance [Ω] 470k
Power [W] 0,063
Tolerance [%] 5
Data Sheet

Unit price

0,0142 €

Stock: 20000
Further delivery:
CW 28/2024

Minimum order quantity 100 units or
multiples of 100.
