TNX 13

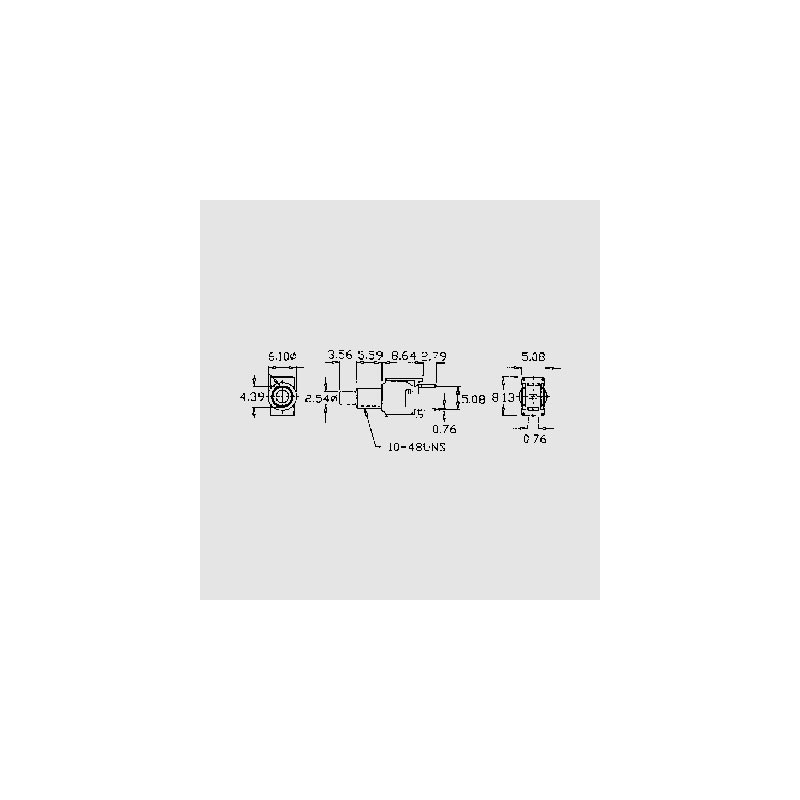

for Ø4.39 and 4.75mm housing cutouts

• pushbutton momentary switch with print or solder terminals
• sealed against dirt and fluxing agent
• suitable for use in applications where space is very limited
• switching capacity: 1A/120V AC or 28V DC
• switching cycles under load: 60000
• contact resistance: <20mΩ
• insulation resistance: 1000MΩ
• dielectric strength: 1000Veff
• operating temperature: -30...+85°C
• contacts: brass, silver-plated
• terminals: brass, silver-plated
• sealing: epoxy
• shell material: diallylphthalate (DAP)

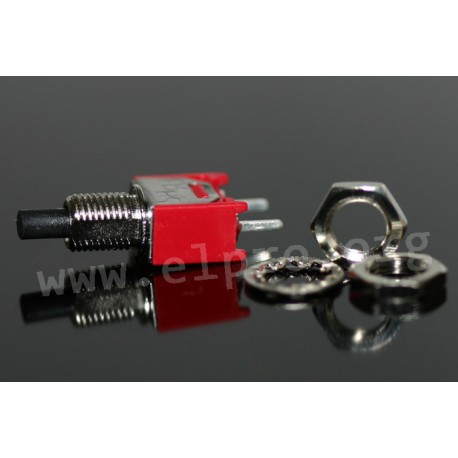

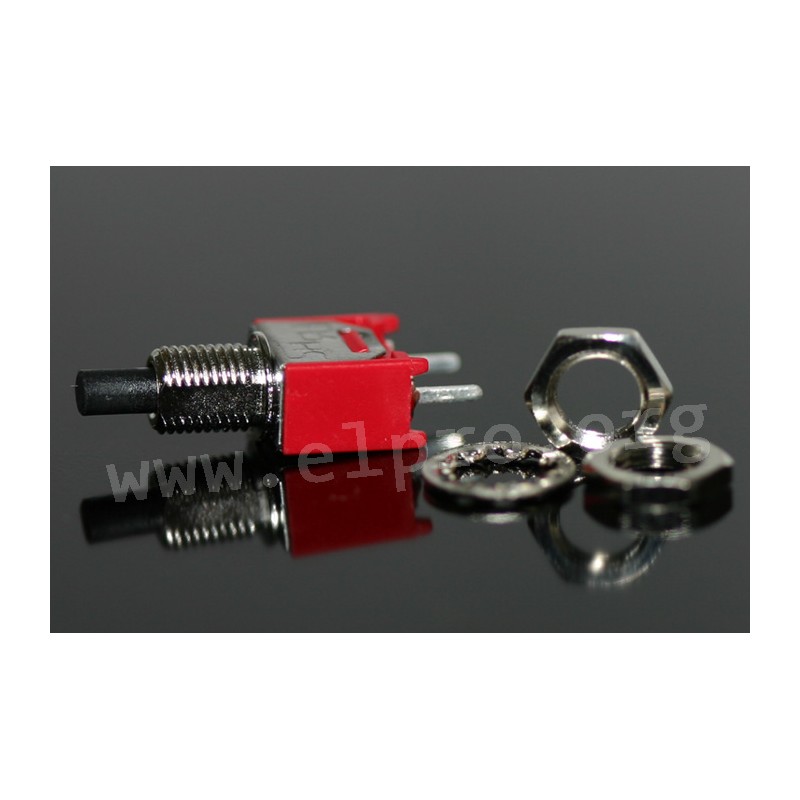

TNX 13: vertical with print terminals

TNX 13

13337 TNX 13 TS-21-SCQ-E-H TS-21-SCQ-E-H for Ø4.39 and 4.75mm housing cutouts. • pushbutton momentary switch with print or solder terminals• sealed against dirt and fluxing agent• suitable for use in applications where space is very limited• switching capacity: 1A/120V AC or 28V DC• switching cycles under load: 60000• contact resistance: &lt;20mΩ• insulation resistance: 1000MΩ• dielectric strength: 1000Veff• operating temperature: -30...+85°C• contacts: brass, silver-plated• terminals: brass, silver-plated• sealing: epoxy• shell material: diallylphthalate (DAP)TNX 13: vertical with print terminals

Specifications

manufacturer
Manufacturer's name TS-21-SCQ-E-H
Panel cut-out [mm] Ø 4,39

Unit price

1,34 €

Stock: 1690
Next incoming goods:
CW 19/2024
700 units


Further delivery:
CW 29/2024

Minimum order quantity 5 units or
multiples of 5.
