FN405-0.5-02

Schaffner PCB filter series FN405

Single-phase RFI filters with a very low profile and a good attenuation. These line filters are suitable for PCB mounting as well as for various applications. We offer the following types of this Schaffner series: FN405-0.5-02, FN405-1-02, FN405-3-02, FN405-6-02 and FN405-10-02.

  • rated current: 0,5 to 10A
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/line: 760V AC
  • operating temperature: -25 to +100°C

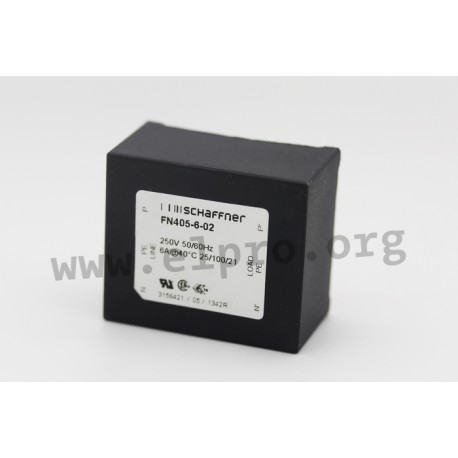

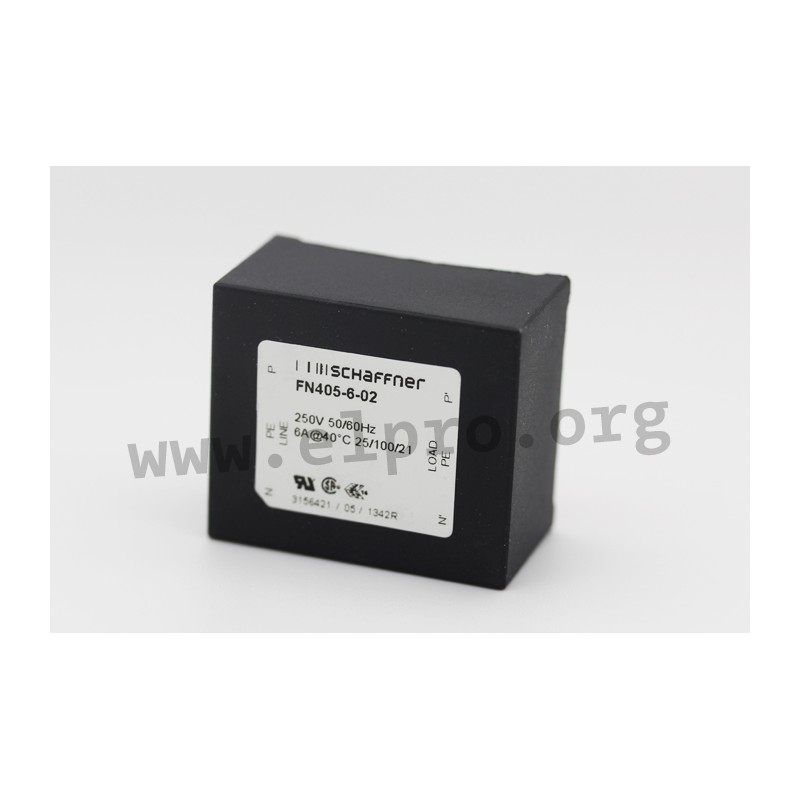

FN405-6-02

FN405-0.5-02

116667 FN405-0.5-02 FN405-0.5-02 Schaffner PCB filter series FN405. Single-phase RFI filters with a very low profile and a good attenuation. These line filters are suitable for PCB mounting as well as for various applications. We offer the following types of this Schaffner series: FN405-0.5-02, FN405-1-02, FN405-3-02, FN405-6-02 and FN405-10-02. rated current: 0,5 to 10A dielectric strength line/ground: 2kV AC dielectric strength line/line: 760V AC operating temperature: -25 to +100°C

Specifications

manufacturer
Manufacturer's name FN405-0.5-02
CX [nF] 15
inductance [mH] 24
Rated current [A] 0,5
Data Sheet

Unit price

10,49 €

Stock: 12
Further delivery:
CW 34/2024
