DC22.2121.111

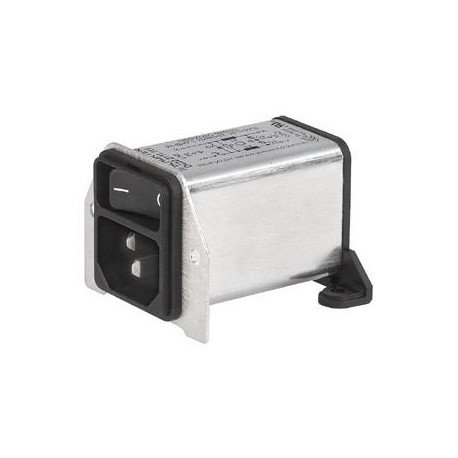

Schurter RFI filter series DC22

RFI filters in a metal housing with an IEC plug and a 2-pole line switch. These devices have a compact design and are suitable for various applications. We offer the type DC22.2121.111 of this Schurter series.

  • rated current: 2A
  • dielectric strength line/ground: >2,7kV DC
  • dielectric strength line/line: >1,7kV DC
  • operating temperature: -25 to +85°C

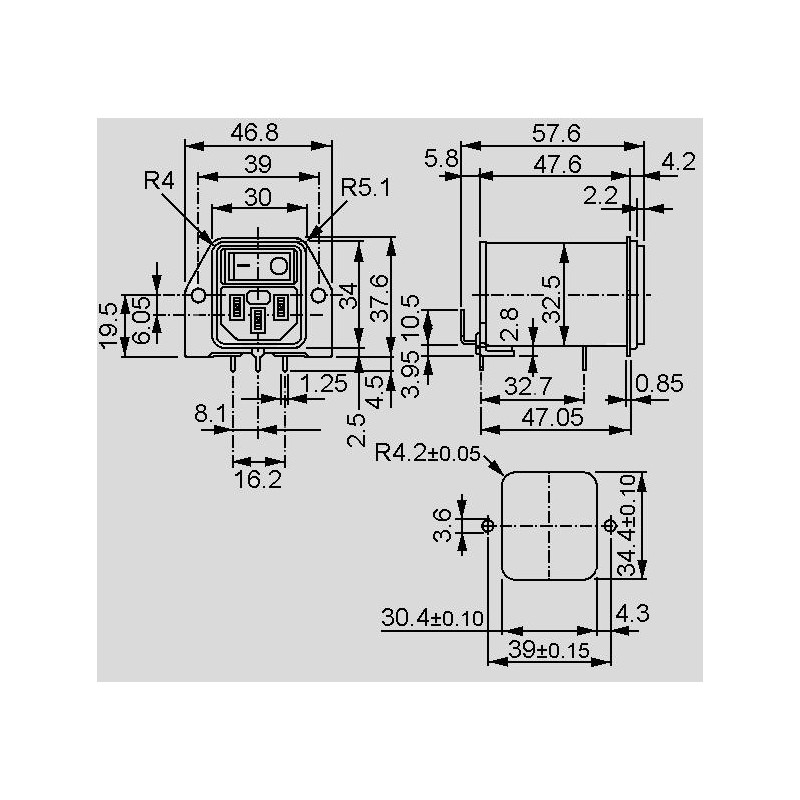

dimensions DC22._

DC22.2121.111

32571 DC22.2121.111 DC22.2121.111 Schurter RFI filter series DC22. RFI filters in a metal housing with an IEC plug and a 2-pole line switch. These devices have a compact design and are suitable for various applications. We offer the type DC22.2121.111 of this Schurter series. rated current: 2A dielectric strength line/ground: >2,7kV DC dielectric strength line/line: >1,7kV DC operating temperature: -25 to +85°C

Specifications

manufacturer
Manufacturer's name DC22.2121.111
Rated current [mA] 2
Resistance [kΩ] 1000
Inductance [µH] 2x4000
CX [µF] 0,1
CY [pF] 2x2200
Data Sheet

Unit price

21,49 €

Stock: 33
Further delivery:
CW 08/2026
