T11-611-10A

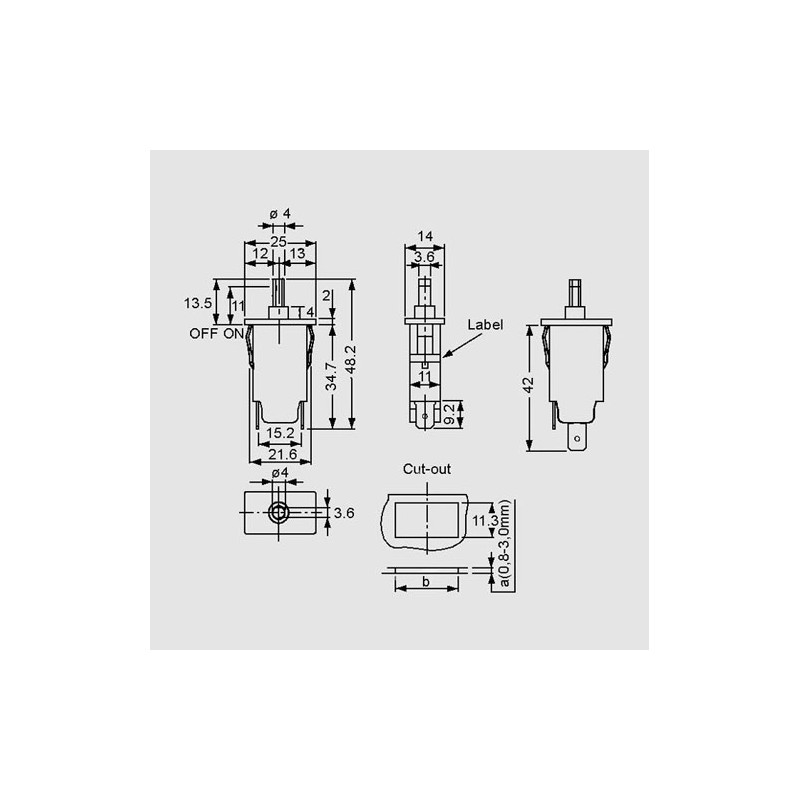

snap in mounting

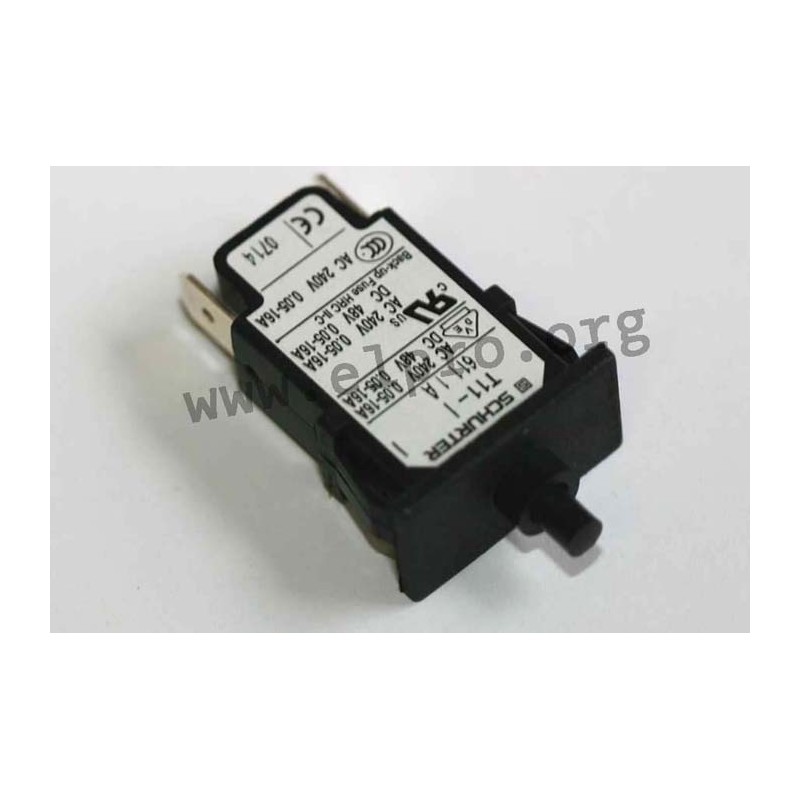

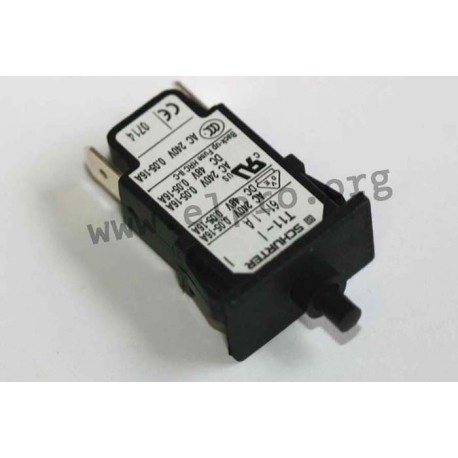

* single pole thermal circuit breaker
* ideal as replacement for fuses, especially for higher rated current
* advantage of being immune to high inrush currents and line transients
* easy snap-in mounting
* for frontpanel with thickness 0.8...3mm
* quick connect terminals 6.3x0.8mm
* rated voltage:
120V/240V AC
24V/32V/48V AC
* conditional short circuit current (PC1, 240V AC): 2000A
* short circuit capacity
240V AC, IN<6,5A: 8xIn
240V AC, IN³6,5A: 96A
* dielectric strenght: 4000V AC
* insulation resistance (500V DC): >100MΩ
* type of tripping: positively trip-free
* weight: 10g

T11-611-10A

27485 T11-611-10A 4400.0030 4400.0030 snap in mounting. * single pole thermal circuit breaker* ideal as replacement for fuses, especially for higher rated current* advantage of being immune to high inrush currents and line transients* easy snap-in mounting* for frontpanel with thickness 0.8...3mm* quick connect terminals 6.3x0.8mm* rated voltage: 120V/240V AC24V/32V/48V AC* conditional short circuit current (PC1, 240V AC): 2000A* short circuit capacity 240V AC, IN&lt;6,5A: 8xIn240V AC, IN³6,5A: 96A* dielectric strenght: 4000V AC* insulation resistance (500V DC): &gt;100MΩ* type of tripping: positively trip-free* weight: 10g

Data sheet

manufacturer
manufacturer's name 4400.0030

Download

Data Sheet

5,19 €

stock: 70
