3-139-123

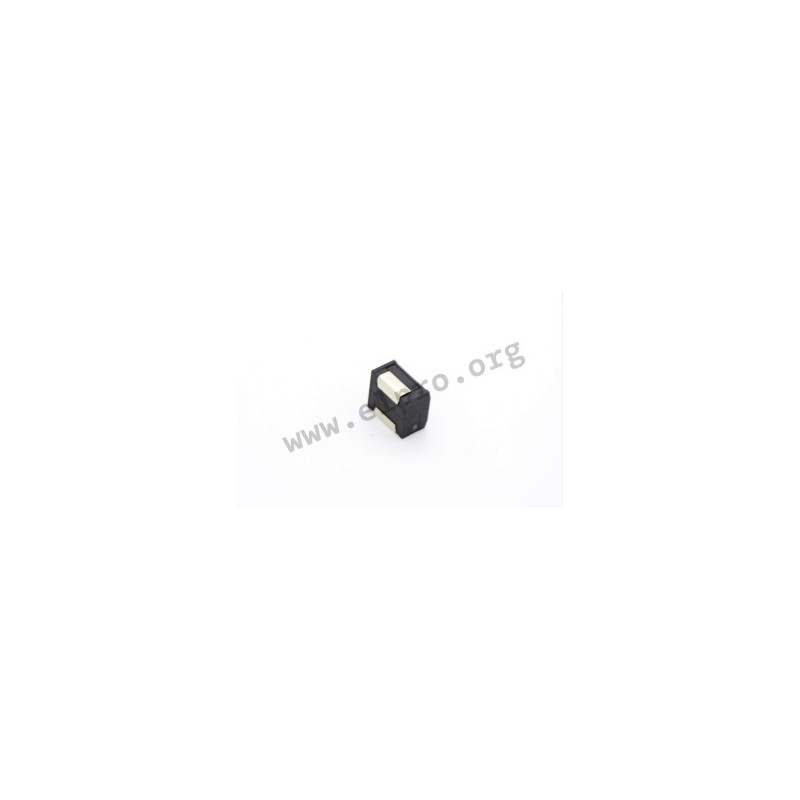

Schurter SMD fuse series UHP

Fast acting SMD fuses in a compact housing (11,4x10,2mm) with a breaking capacity of up to 3000A. These devices turn off very fast at twice the rated current and are suitable for SELV compliant applications. They have a housing made of polyphthalamide and copper alloy terminals with a Ni/Sn coating. We offer various types of this Schurter series.

  • rated voltage: 80V DC
  • rated current: 50 to 100A
  • breaking capacity: 3000A (at 63V DC)
  • operating temperature: -55 to +125°C
  • weight: 1,2g
  • taped

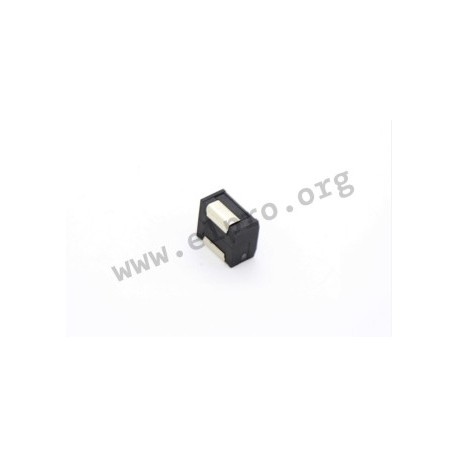

3-139-123, Schurter SMD fuses, fast acting, 11,4x10,2mm housing, UHP series

3-139-123

250943 3-139-123 3-139-123 Schurter SMD fuse series UHP. Fast acting SMD fuses in a compact housing (11,4x10,2mm) with a breaking capacity of up to 3000A. These devices turn off very fast at twice the rated current and are suitable for SELV compliant applications. They have a housing made of polyphthalamide and copper alloy terminals with a Ni/Sn coating. We offer various types of this Schurter series. rated voltage: 80V DC rated current: 50 to 100A breaking capacity: 3000A (at 63V DC) operating temperature: -55 to +125°C weight: 1,2g taped

Specifications

manufacturer
Manufacturer's name 3-139-123
Nominal voltage [V DC] 80
Melting integral [A²s] 1250
Rated current [A] 50
Data Sheet

Unit price

3,19 €

Stock: 0
Further delivery:
CW 07/2026

Minimum order quantity 10 units or
multiples of 10.
