Schurter SMD fuse series UHP

Fast acting SMD fuses in a compact housing (11,4x10,2mm) with a breaking capacity of up to 3000A. These devices turn off very fast at twice the rated current and are suitable for SELV compliant applications. They have ...

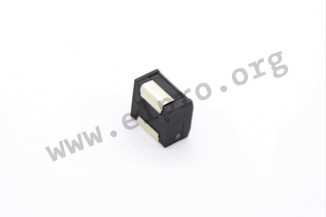

Schurter SMD fuse series UHP

Fast acting SMD fuses in a compact housing (11,4x10,2mm) with a breaking capacity of up to 3000A. These devices turn off very fast at twice the rated current and are suitable for SELV compliant applications. They have a housing made of polyphthalamide and copper alloy terminals with a Ni/Sn coating. We offer the following types of this Schurter series: 3-139-122, 3-139-124, 3-139-126, 3-139-128, 3-139-130 and 3-139-132.

  • rated voltage: 80V DC
  • rated current: 50 to 100A
  • breaking capacity: 3000A (at 63V DC)
  • operating temperature: -55 to +125°C
  • weight: 1,2g
  • taped
> More
Data Sheet
Showing 1 - 6 of 6 products
