3413.0332.22

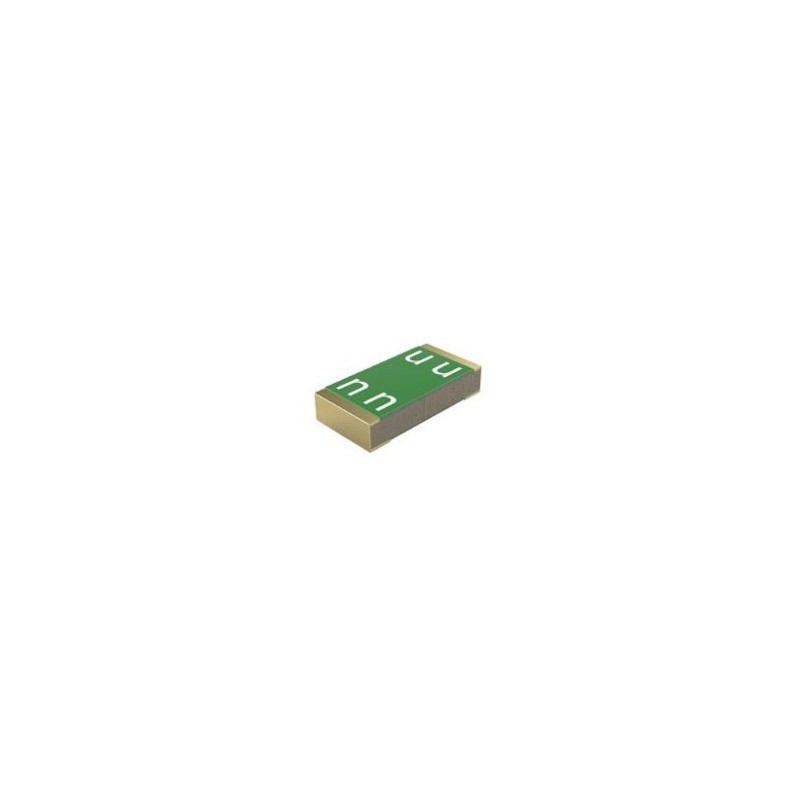

Schurter SMD fuse series UST1206

Time lag fuses in a 1206 SMD housing (3,2x1,6mm) made of fiber-reinforced plastic (UL94V-0), and suitable for direct PCB mounting. These fuses have a high melting I²t-values and an impermeable potting compound. We offer various types of this Schuter series.

  • rated voltage: 32V AC, 63V DC
  • taped

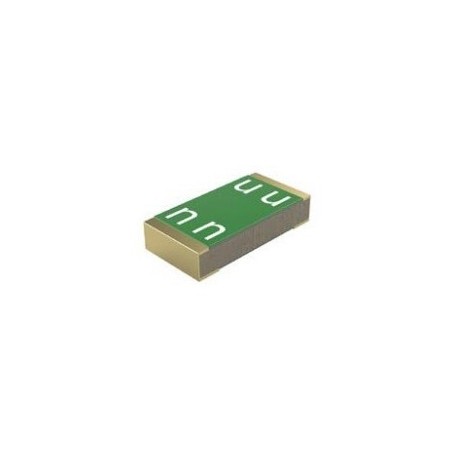

3413.0326.22, Schurter SMD fuses, time lag, 1206 housing, UST1206 series

3413.0332.22

235018 3413.0332.22 3413.0332.22 Schurter SMD fuse series UST1206. Time lag fuses in a 1206 SMD housing (3,2x1,6mm) made of fiber-reinforced plastic (UL94V-0), and suitable for direct PCB mounting. These fuses have a high melting I²t-values and an impermeable potting compound. We offer various types of this Schuter series. rated voltage: 32V AC, 63V DC taped

Specifications

manufacturer
Manufacturer's name 3413.0332.22
Nominal voltage [V DC] 63
Nominal voltage [V AC] 32
Voltage drop, max. [mV] 48
Melting integral [A²s] 220
Rated current [A] 25
Data Sheet

Unit price

0,448 €

Stock: 400
Further delivery:
CW 11/2026

Minimum order quantity 100 units or
multiples of 100.
