FK 15 L Ni/1 gelb

Schützinger lamella basket plugs series FK 15

Stackable CAT I lamella basket plugs in a straight alignment and with grip sleeve for Ø 4mm cable, unmounted, as well as with an axial plug-in socket. These plugs are suitable for lead cross-sections of up to 1mm² and are available with solder terminal (FK 15 L) or with screw terminal (FK 15 S). They are available in several colours and their contact parts are Ni-plated. We offer various types of this Schützinger series.

  • insulation: PE (Hostalen)
  • max. transition resistance: 3mΩ
  • rated current: 16A
  • rated voltage: 30V AC/60V DC
  • operating temperature range: -25°C to +90°C

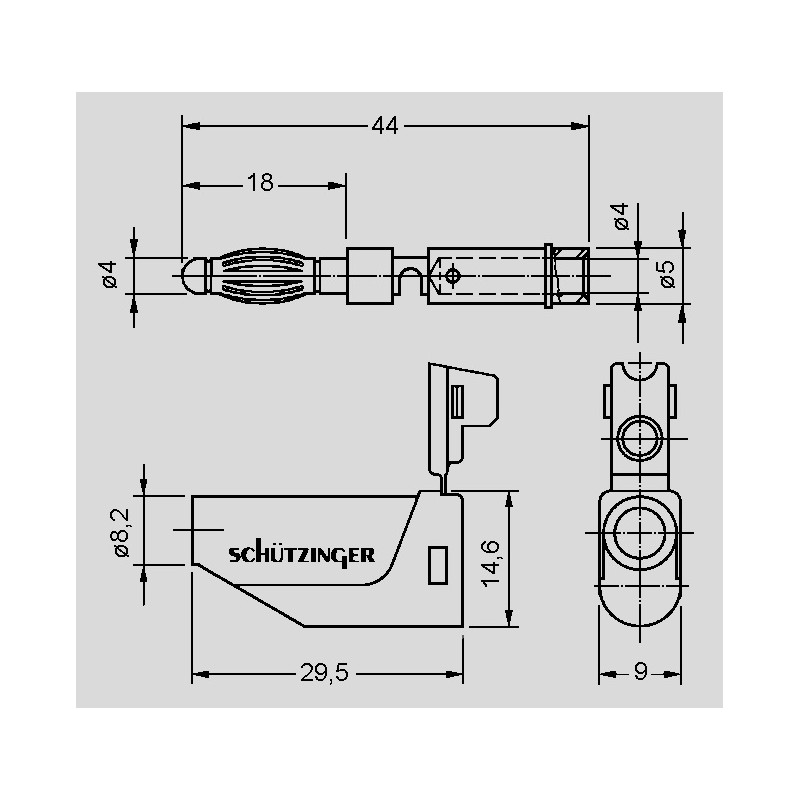

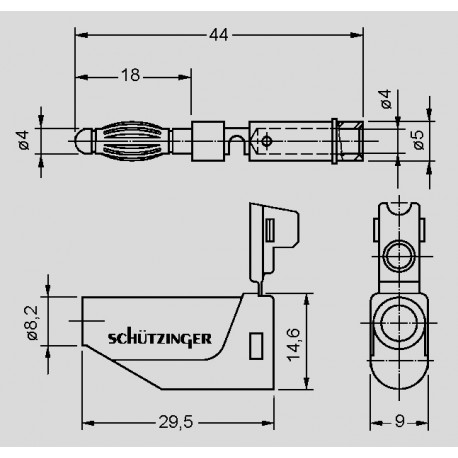

dimensions FK 15 L

FK 15 L Ni/1 gelb

43511 FK 15 L Ni/1 gelb FK15LNI/1/GE FK15LNI/1/GE Schützinger lamella basket plugs series FK 15. Stackable CAT I lamella basket plugs in a straight alignment and with grip sleeve for Ø 4mm cable, unmounted, as well as with an axial plug-in socket. These plugs are suitable for lead cross-sections of up to 1mm² and are available with solder terminal (FK 15 L) or with screw terminal (FK 15 S). They are available in several colours and their contact parts are Ni-plated. We offer various types of this Schützinger series. insulation: PE (Hostalen) max. transition resistance: 3mΩ rated current: 16A rated voltage: 30V AC/60V DC operating temperature range: -25°C to +90°C

Specifications

manufacturer
Manufacturer's name FK15LNI/1/GE
Rated current 16A
Colour yellow
Data Sheet

Unit price

1,41 €

Stock: 20
Further delivery:
CW 52/2025
