Schützinger lamella basket plugs series FK 15

Stackable CAT I lamella basket plugs in a straight alignment and with grip sleeve for Ø 4mm cable, unmounted, as well as with an axial plug-in socket. These plugs are suitable for lead cross-sections o...

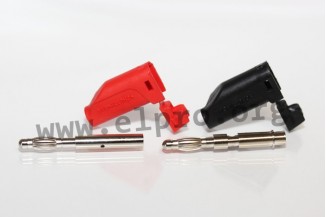

Schützinger lamella basket plugs series FK 15

Stackable CAT I lamella basket plugs in a straight alignment and with grip sleeve for Ø 4mm cable, unmounted, as well as with an axial plug-in socket. These plugs are suitable for lead cross-sections of up to 1mm² and are available with solder terminal (FK 15 L) or with screw terminal (FK 15 S). They are available in several colours and their contact parts are Ni-plated. We offer various types of this Schützinger series.

  • insulation: PE (Hostalen)
  • max. transition resistance: 3mΩ
  • rated current: 16A
  • rated voltage: 30V AC/60V DC
  • operating temperature range: -25°C to +90°C
> More
Data Sheet
