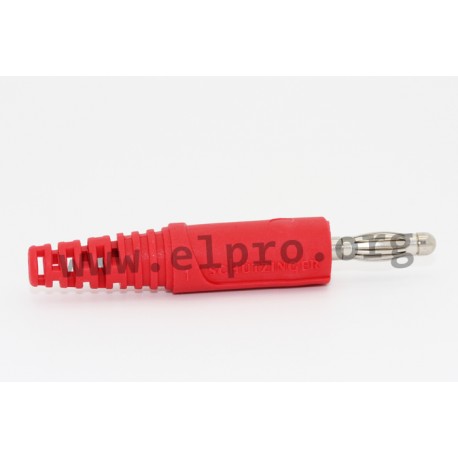

FK 9 L Ni rot

lamella basket plugs FK 8, FK 9 by Schützinger

• CAT I
• straight
• with grip sleeve for Ø 4mm cable, unmounted
• up to 2,5mm² lead cross-section
• FK_L: with solder terminal
• several colours
• contact parts Ni-plated
• insulation: TPE (evoprene)
• max. transition resistance: 3mΩ
• rated current: 32A
• rated voltage: 30V AC/60V DC
• operating temperature range: -30°C...+100°C
• by Schützinger

FK 9 L Ni rot

43503 FK 9 L Ni rot FK9LNI/RT FK9LNI/RT lamella basket plugs FK 8, FK 9 by Schützinger. • CAT I• straight• with grip sleeve for Ø 4mm cable, unmounted• up to 2,5mm² lead cross-section• FK_L: with solder terminal• several colours• contact parts Ni-plated• insulation: TPE (evoprene)• max. transition resistance: 3mΩ• rated current: 32A• rated voltage: 30V AC/60V DC• operating temperature range: -30°C...+100°C• by Schützinger

Specifications

manufacturer
Manufacturer's name FK9LNI/RT
Rated current 32A
Colour red
Data Sheet

Unit price

1,51 €

Stock: 25
Further delivery:
CW 16/2024

Minimum order quantity 5 units or
multiples of 5.
