IBU 5568 Ni gelb

insulated panel sockets IBU 401, IBU 5568 by Schützinger

• CAT I
• with moulded insulation
• with screwed head

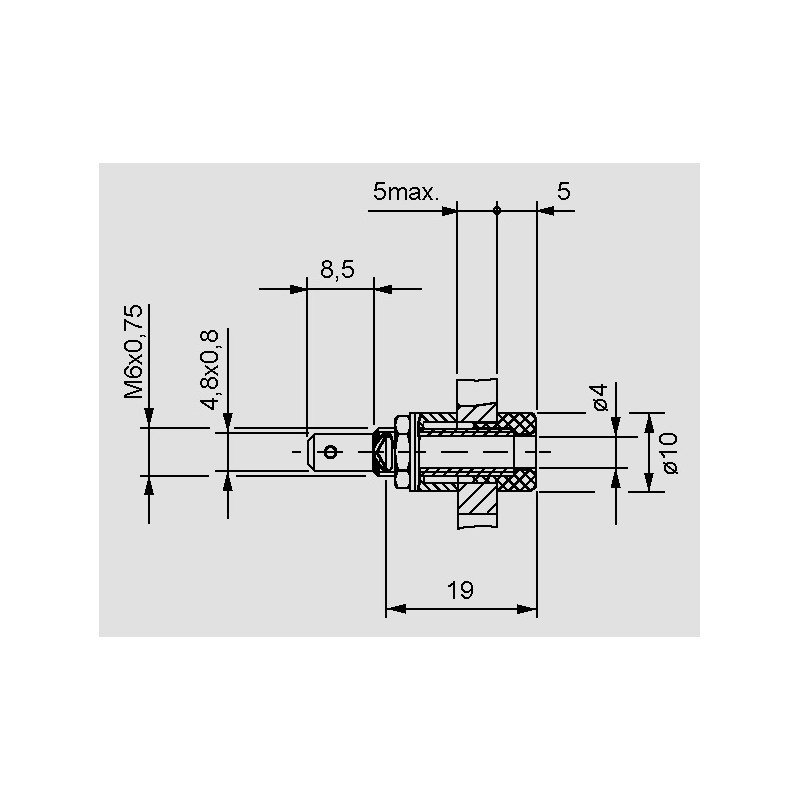

• hole Ø 7.5mm
• several colours
• contacts: brass, Ni-plated
• socket terminal tab, 4.8x0.8mm
• max. torque for the fastening nuts: 60Ncm
• max. transition resistance: 5mΩ
• rated current: 32A
• rated voltage: 33V AC / 70V DC
• operating temperature range: -25°C...+80°C
• by Schützinger

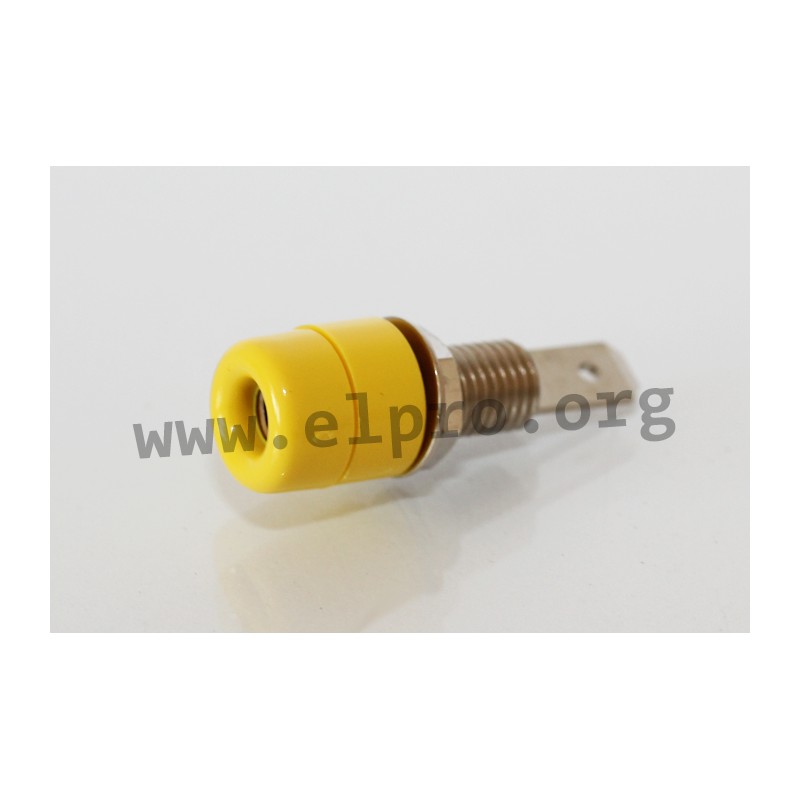

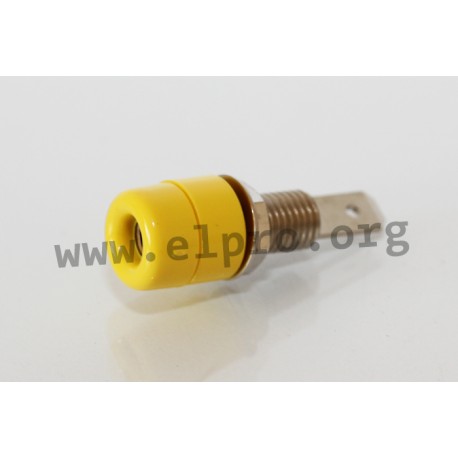

IBU 5568 Ni gelb by Schützinger

IBU 5568 Ni gelb

43547 IBU 5568 Ni gelb IBU5568NI/GE IBU5568NI/GE insulated panel sockets IBU 401, IBU 5568 by Schützinger. • CAT I• with moulded insulation• with screwed head• hole Ø 7.5mm• several colours• contacts: brass, Ni-plated• socket terminal tab, 4.8x0.8mm• max. torque for the fastening nuts: 60Ncm• max. transition resistance: 5mΩ• rated current: 32A• rated voltage: 33V AC / 70V DC• operating temperature range: -25°C...+80°C• by Schützinger

Specifications

manufacturer
Manufacturer's name IBU5568NI/GE
Rated current 32A
Colour yellow
Data Sheet

Unit price

1,20 €

Stock: 203
Further delivery:
CW 19/2024

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
