IBU 5568 Ni rot

insulated panel sockets IBU 401, IBU 5568 by Schützinger

* CAT I
* with moulded insulation
* with screwed head
* hole Ø 7.5mm
* several colours
* contacts: brass, Ni-plated
* IBU401_: solder or screw terminal

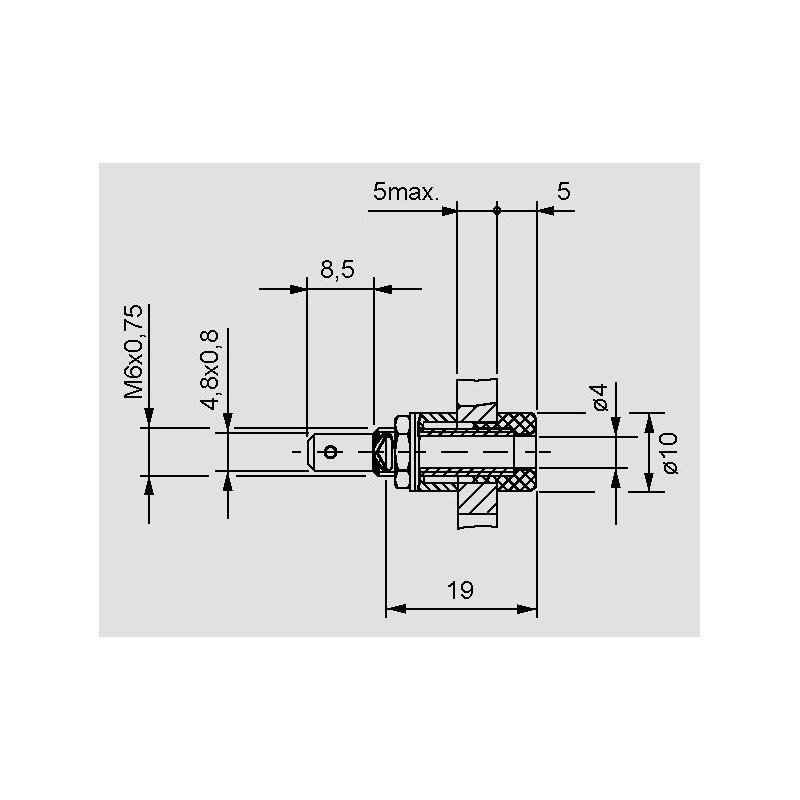

* IBU5568_: socket terminal tab, 4.8x0.8mm
* max. torque for the fastening nuts: 60Ncm
* max. transition resistance:
IBU401: 10mΩ
IBU5568: 5mΩ
* rated current: 32A
* rated voltage: 33V AC / 70V DC
* operating temperature range: -25°C...+80°C
* by Schützinger

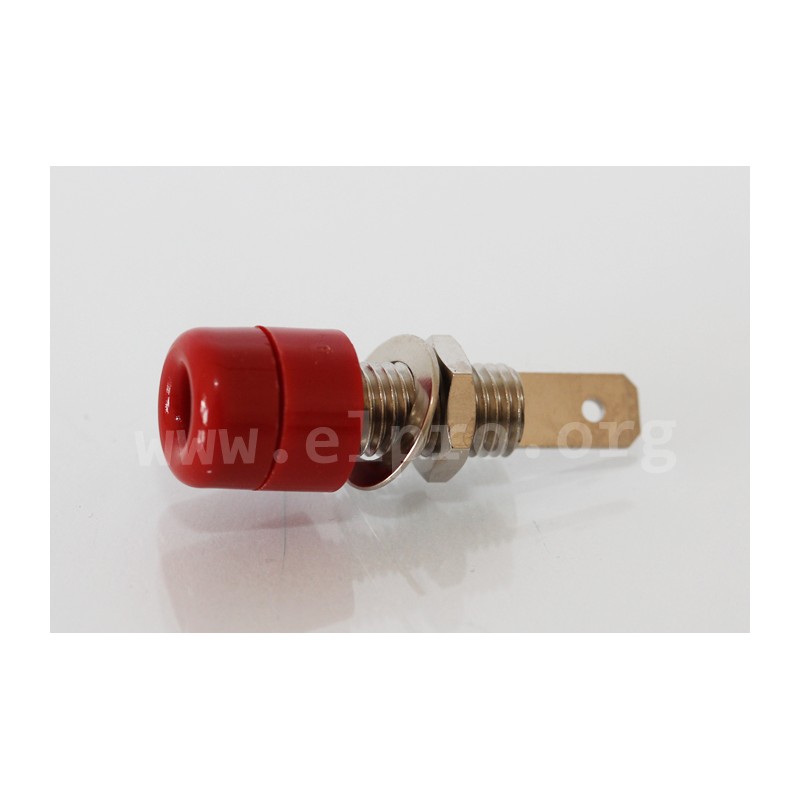

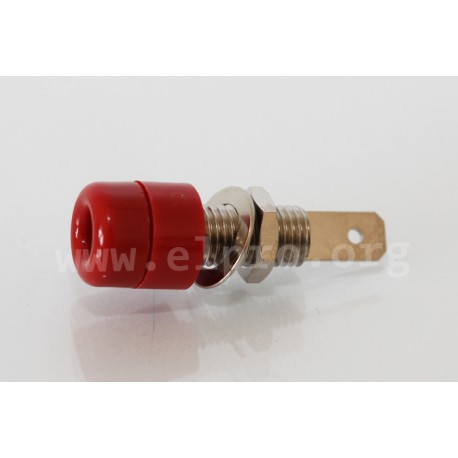

IBU 5568 Ni rot by Schützinger

IBU 5568 Ni rot

43549 IBU 5568 Ni rot IBU5568NI/RT IBU5568NI/RT insulated panel sockets IBU 401, IBU 5568 by Schützinger. * CAT I* with moulded insulation* with screwed head* hole Ø 7.5mm* several colours* contacts: brass, Ni-plated* IBU401_: solder or screw terminal* IBU5568_: socket terminal tab, 4.8x0.8mm* max. torque for the fastening nuts: 60Ncm* max. transition resistance:IBU401: 10mΩIBU5568: 5mΩ* rated current: 32A* rated voltage: 33V AC / 70V DC* operating temperature range: -25°C...+80°C* by Schützinger

Specifications

manufacturer
Manufacturer's name IBU5568NI/RT
Rated current 32A
Colour red
Data Sheet

Unit price

1,20 €

Stock: 19
Further delivery:
CW 19/2024

Minimum order quantity 5 units or
multiples of 5.
