SFK 30 S Ni/OK blau

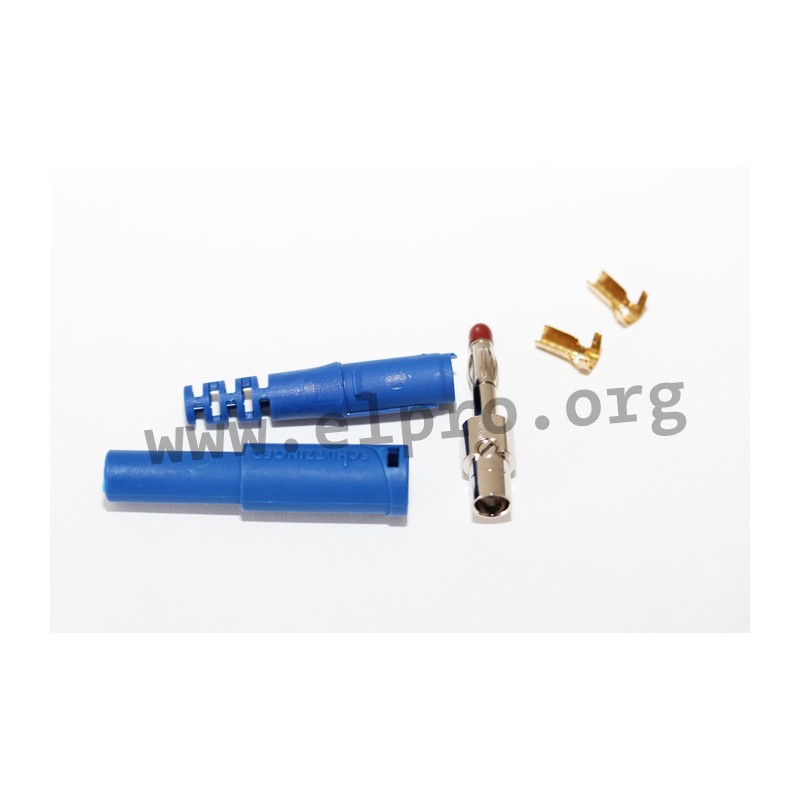

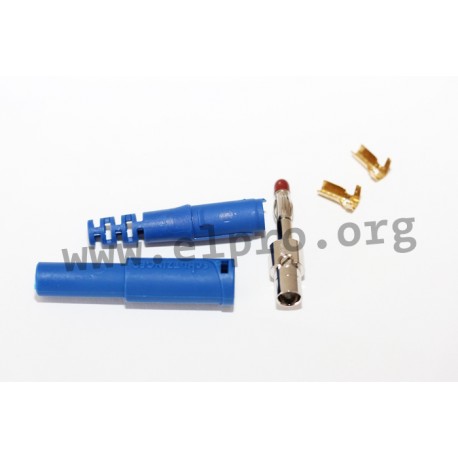

Schützinger banana plug series SFK 30 S and SFK 30 C

  • straight type safety banana plugs
  • with a screw terminal (SFK 30 S_) or a crimp connection (SFK 30 C_)
  • suitable for a wire cross section of 1mm² (SFK 30 S_) or 2,5mm² (SFK 30 C_)
  • grip sleeves made of polyamide (PA 6.6)
  • nickel-plated contacts
  • in various colours
  • operating temperature: -25 to +80°C
  • rated voltage: 1000V (Cat. II)
  • rated current: 16 (SFK 30 S_) resp. 32A (SFK 30 C_)

SFK 30 S Ni/OK blau

43317 SFK 30 S Ni/OK blau SFK30SNI/OK/BL SFK30SNI/OK/BL Schützinger banana plug series SFK 30 S and SFK 30 C. straight type safety banana plugs with a screw terminal (SFK 30 S_) or a crimp connection (SFK 30 C_) suitable for a wire cross section of 1mm² (SFK 30 S_) or 2,5mm² (SFK 30 C_) grip sleeves made of polyamide (PA 6.6) nickel-plated contacts in various colours  operating temperature: -25 to +80°C rated voltage: 1000V (Cat. II) rated current: 16 (SFK 30 S_) resp. 32A (SFK 30 C_)

Specifications

manufacturer
Manufacturer's name SFK30SNI/OK/BL
Rated current 16A
Colour blue
Data Sheet

Unit price

2,99 €

Stock: 5
Further delivery:
CW 21/2024
