SET SPS 2040 rot

safety test probes SPS by Schützinger

SPS 2381

* with axial safety socket
* socket Ø 4mm
* both ends can be used individually. One end has a 5mm spring loaded steel tip, the oder end a rigid, hardened steel tip with a Ø 4mm lamelle-basket
* the tip protection cap is included
* contact parts Ni-plated
* several colours
* transition resistance: 5mΩ
* rated current: 32A
* rated voltage: 1000V (Cat. II)
* operating temperature range: -25°C...+80°C
* by Schützinger

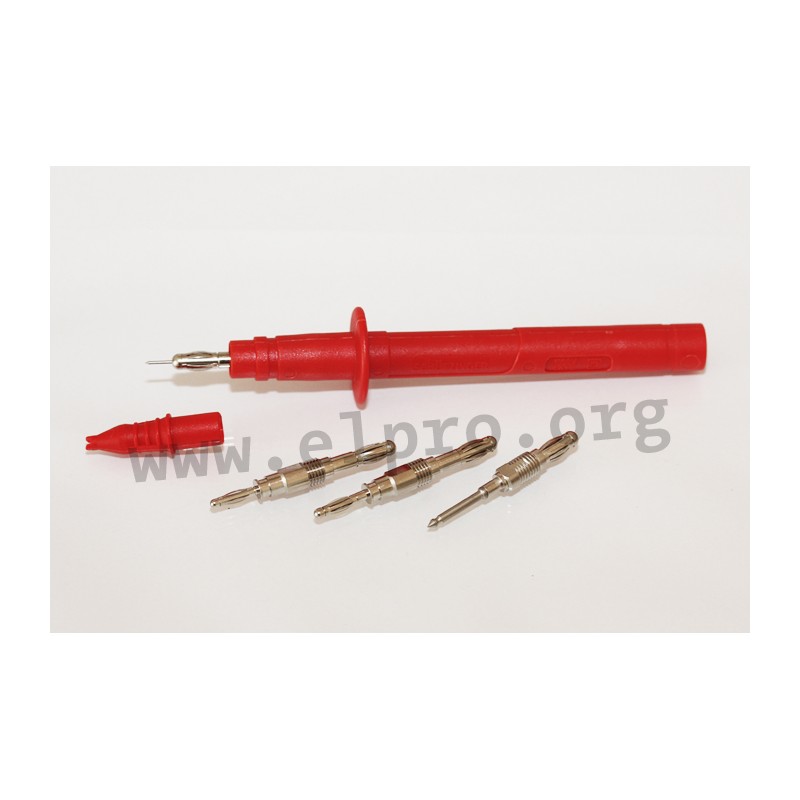

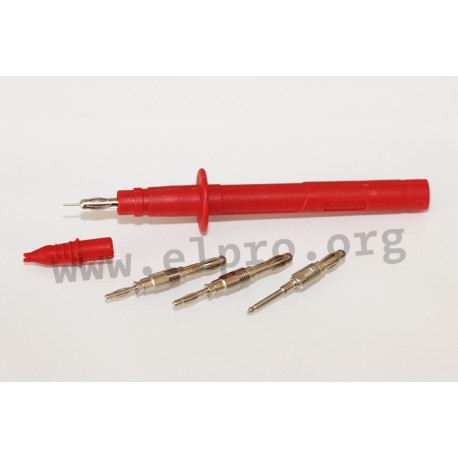

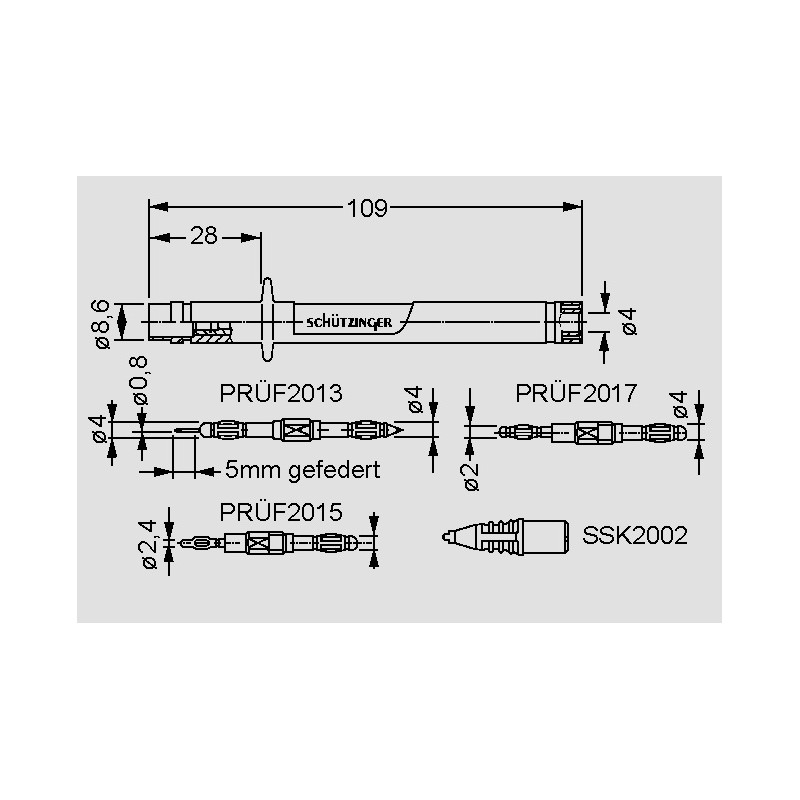

SET SPS 2040

* safety test probes with axial safety socket
* different probes inserts with the help of tip protection head screwable
* test probes PRÜF2013, -2015 and -2017 as well tip protection head SSK2002 is included
* PRÜF2013: used on both sides: one end has a 5mm spring loaded steel tip, the oder end a rigid, hardened steel tip
* PRÜF2015: single-sided use: with a Ø 4mm lamelle-basket
* PRÜF2017: single-sided use: with a Ø 2mm lamelle-basket
* SSK2001: with integrated IC test probe for 2.54mm pitch (DIL): as a tool for screwing of test probes usable
* contact parts Ni-plated
* insulation: PA 6.6 (polyamid)
* several colours
* transition resistance: 10mΩ
* rated current: 32A
* rated voltage: 1000V (Cat. II)
* operating temperature range: -25°C...+70°C
* by Schützinger

SET SPS 2040 rot

SET SPS 2040 rot

43478 SET SPS 2040 rot SETSPS2040/RT SETSPS2040/RT safety test probes SPS by Schützinger. SPS 2381* with axial safety socket* socket Ø 4mm* both ends can be used individually. One end has a 5mm spring loaded steel tip, the oder end a rigid, hardened steel tip with a Ø 4mm lamelle-basket* the tip protection cap is included* contact parts Ni-plated* several colours* transition resistance: 5mΩ* rated current: 32A* rated voltage: 1000V (Cat. II)* operating temperature range: -25°C...+80°C* by SchützingerSET SPS 2040* safety test probes with axial safety socket* different probes inserts with the help of tip protection head screwable* test probes PRÜF2013, -2015 and -2017 as well tip protection head SSK2002 is included* PRÜF2013: used on both sides: one end has a 5mm spring loaded steel tip, the oder end a rigid, hardened steel tip* PRÜF2015: single-sided use: with a Ø 4mm lamelle-basket* PRÜF2017: single-sided use: with a Ø 2mm lamelle-basket* SSK2001: with integrated IC test probe for 2.54mm pitch (DIL): as a tool for screwing of test probes usable* contact parts Ni-plated* insulation: PA 6.6 (polyamid)* several colours* transition resistance: 10mΩ* rated current: 32A* rated voltage: 1000V (Cat. II)* operating temperature range: -25°C...+70°C* by Schützinger

Specifications

manufacturer
Manufacturer's name SETSPS2040/RT
Colour red
Data Sheet

Unit price

20,39 €

Stock: 10
Further delivery:
CW 23/2024
