C22S-3R0-0100

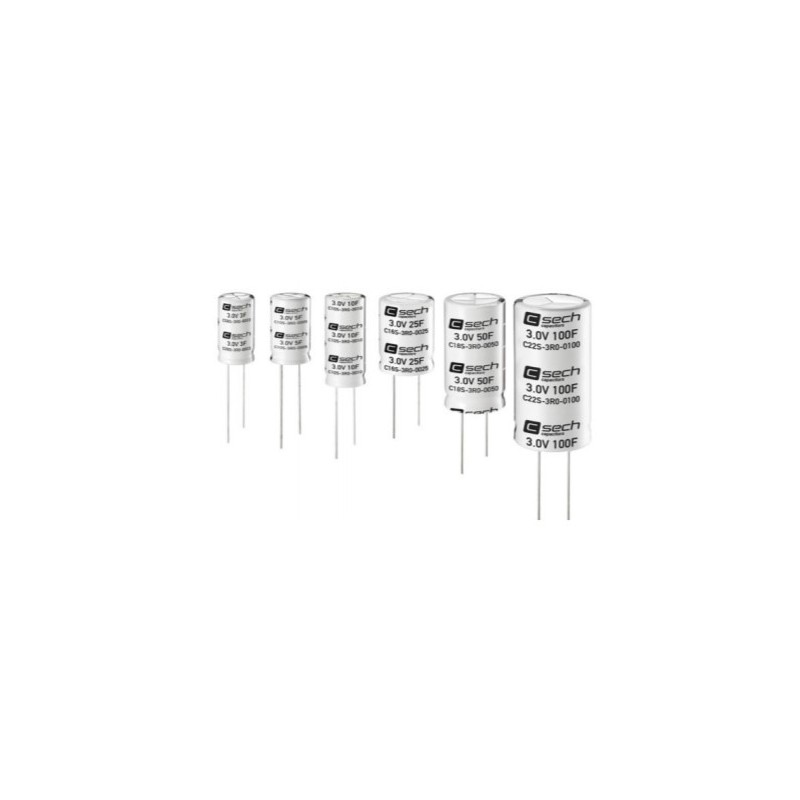

Sech double-layer capacitor series C

  • electrostatic double-layer capacitors (EDLCs)
  • a high capacitance due to a low ESR
  • with a service life of 500 000 resp. 1 000 000 (C35S_) cycles
  • operating temperature: -40 to +65°C
  • capacitance tolerance: -10/+20%
  • capacitance tolerance C35S_: 0/+20%
  • bulk
C22S-3R0-0100, Sech UltraCaps, 3V, C series

C22S-3R0-0100

236689 C22S-3R0-0100 C22S-3R0-0100 Sech double-layer capacitor series C. electrostatic double-layer capacitors (EDLCs) a high capacitance due to a low ESR with a service life of 500 000 resp. 1 000 000 (C35S_) cycles operating temperature: -40 to +65°C capacitance tolerance: -10/+20% capacitance tolerance C35S_: 0/+20% bulk

Specifications

manufacturer
Manufacturer's name C22S-3R0-0100
Nominal voltage [V DC] 3
Equivalent series resistance [mΩ] 8
Capacity [F] 100
Pitch [mm] 10
Dimensions [mm] 45x22
Continuous current [A] 10,7
Short-term peak current [A] 65,2
Data Sheet

Unit price

3,29 €

Stock: 4
Next incoming goods:
CW 05/2026
60 units

Further delivery:
CW 24/2026
